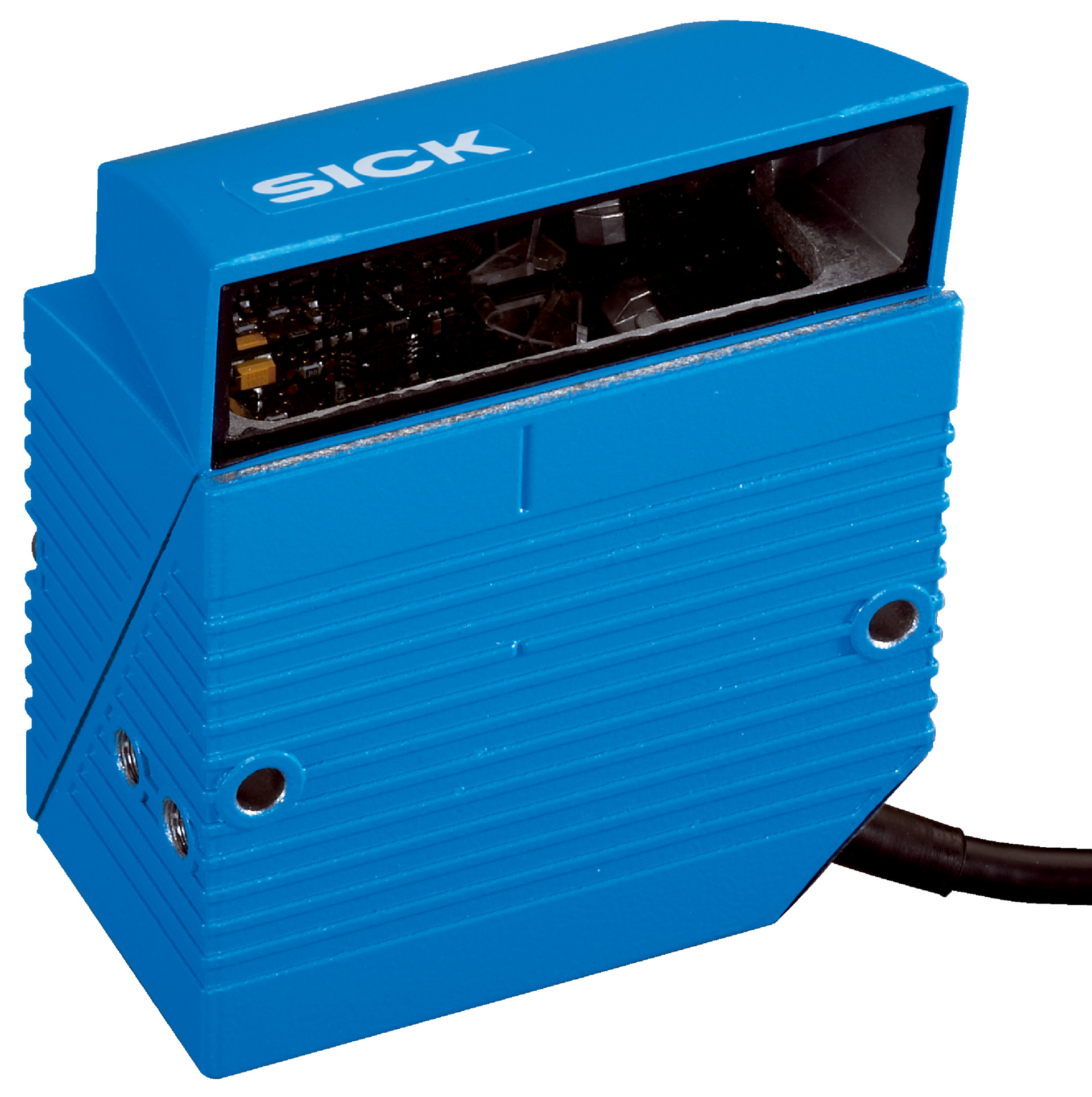

Mid Range Line Scanner CLV620-2000 | Reads 1D Barcodes | IP65 Rated | by SICK
The CLV620-2000 Mid Range Line Scanner is designed for efficient barcode reading in industrial automation, logistics, and manufacturing. With a reading distance of 45 mm to 345 mm and a high scanning frequency of 400 Hz to 1,200 Hz, it ensures quick and accurate data capture. Its robust aluminum housing and IP65 rating make it ideal for demanding environments, while multiple interface options provide versatile connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Line Scanner CLV620-2000 | Reads 1D Barcodes | IP65 Rated | by SICK
Brand: SICK
SKU: 1041550
Alternatively Known As: SICK CLV620 Barcode Scanner, SICK Mid Range Line Scanner, Industrial Barcode Reader, SICK CLV620-2000 Laser Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Sensor type: Line scanner with fixed optical focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 345 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs/outputs: 4 inputs, 4 outputs
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.25 kg
Key Features
- Mid range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- Reading distance from 45 mm to 345 mm
- High scanning frequency from 400 Hz to 1,200 Hz
- Multiple interface options including PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 compliant with IEC 60825-1 standards
- 6 LED optical indicators and acoustic beeper for status indication
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 4.5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV620-2000 Mid Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
