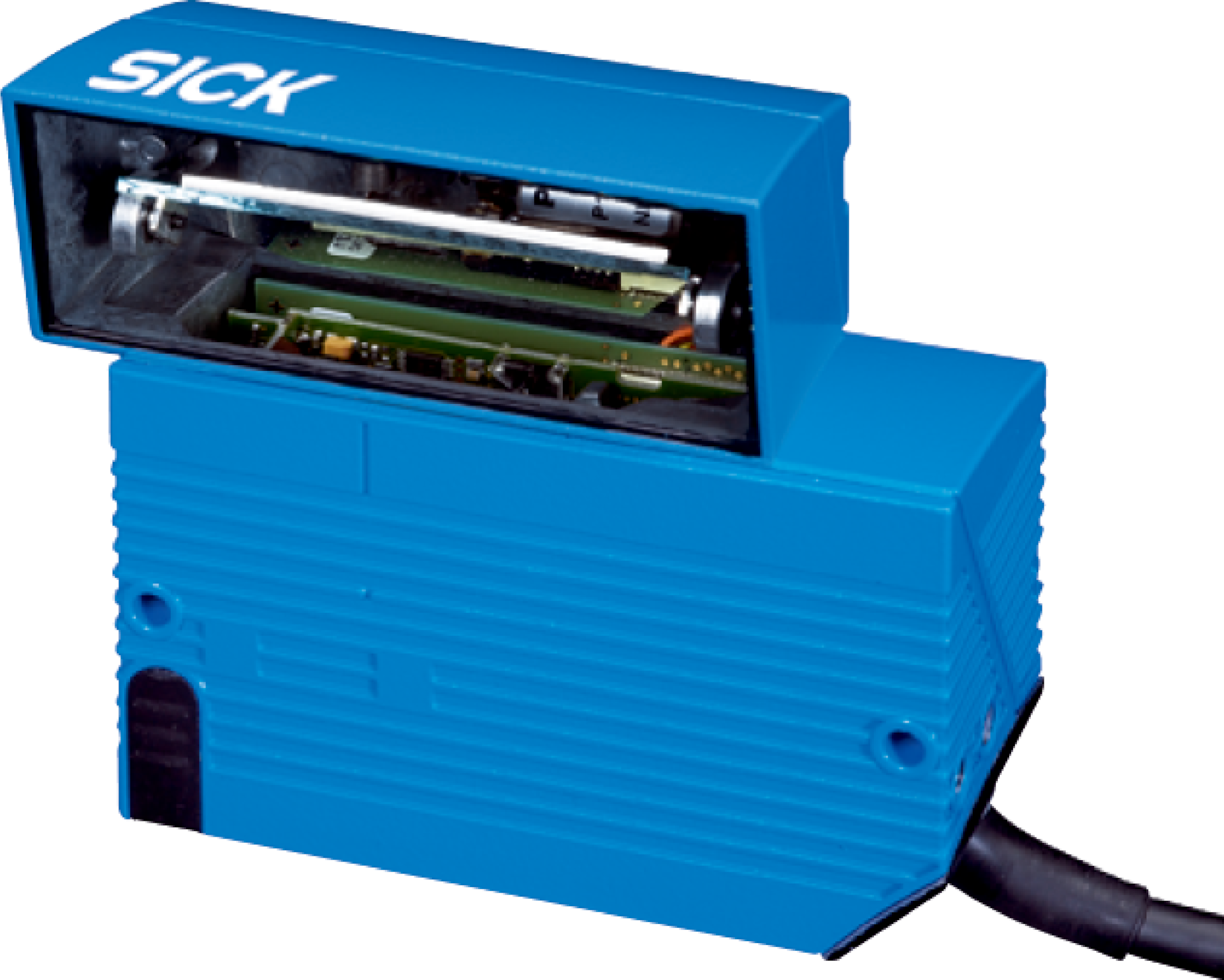

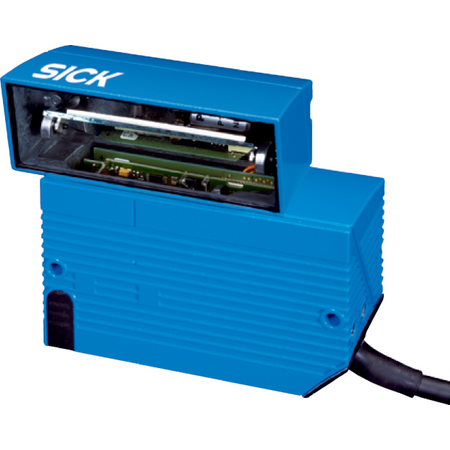

Mid Range Line Scanner CLV631-6000 | Oscillating Mirror | IP65 Rated | by SICK
The Mid Range Line Scanner CLV631-6000 is designed for efficient barcode reading in industrial automation. With a reading distance of 78 mm to 397 mm and a high scanning frequency of 400 Hz to 1200 Hz, it ensures quick and accurate data capture. Its robust aluminum housing and IP65 rating make it ideal for demanding environments, while multiple interface options provide versatile connectivity for logistics and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SICK CLV631, CLV631 Barcode Scanner, Mid Range Line Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Mid Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (IEC 60825-1 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 78 mm to 397 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: approx. 420 g with cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.42 kg
Key Features
- Mid range line scanner with oscillating mirror reading field
- Fixed optical focus with visible red laser light spot (655 nm)
- Laser class 2 compliant with IEC 60825-1 standards
- Reading distance from 78 mm to 397 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports reading of all current 1D barcode types
- Multiple interface options including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, and serial
- Robust aluminum die cast housing with IP65 protection
- Operating temperature range 0°C to +40°C
- Equipped with 6 LEDs and acoustic indicators for status feedback
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product life reducing waste
- Complies with RoHS and China RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-6000 Mid Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
