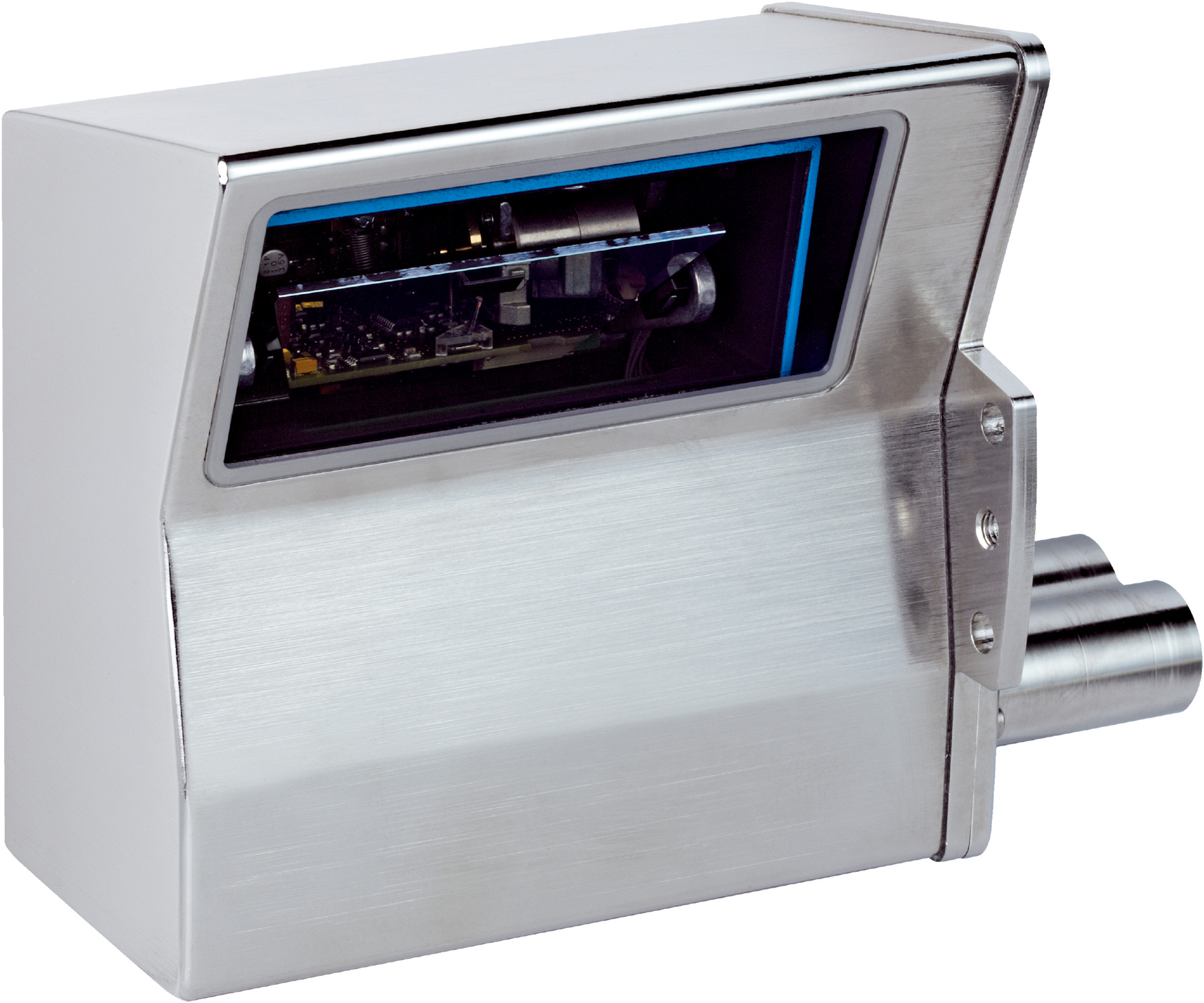

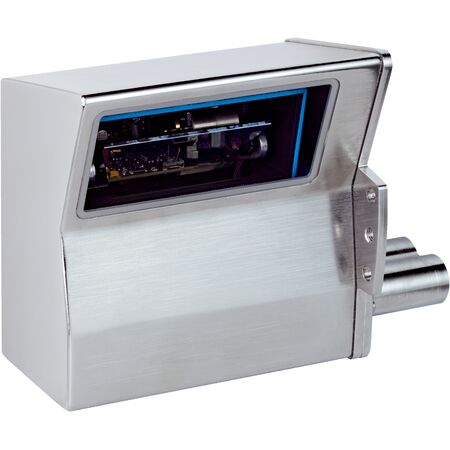

Mid Range Line Scanner SICK CLV631-6831S01 | Ethernet Connection | IP69K Protection | by SICK
The SICK CLV631-6831S01 Mid Range Line Scanner is designed for efficient industrial barcode scanning, featuring a fixed optical focus and an oscillating mirror reading field. With a high scanning frequency of 400 Hz to 1200 Hz and robust IP69K-rated stainless steel housing, it's perfect for automated production lines and logistics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 82 mm to 377 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Connection type: 2 x M12 cylindrical connectors (17-pin male, 4-pin female)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Stainless steel
- Window material: Plastic
- Enclosure rating: IP69K
- Protection class: III (EN 61140)
- Weight: 1,230 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 84mm x 121mm x 164mm
- Weight: 1.23 kg
Key Features
- Mid range line scanner with fixed optical focus
- Oscillating mirror reading field with adjustable position and amplitude
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- High scanning frequency from 400 Hz to 1200 Hz
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust stainless steel housing with IP69K protection rating
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and up to 5000 characters
- Low power consumption of 6 W
- High MTBF of 100,000 hours
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor and network integration is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production line code verification
- Logistics and warehouse barcode identification
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 6 W
- Durable stainless steel housing reduces need for frequent replacements
- High MTBF reduces electronic waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-6831S01 Mid Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automated production line applications.
