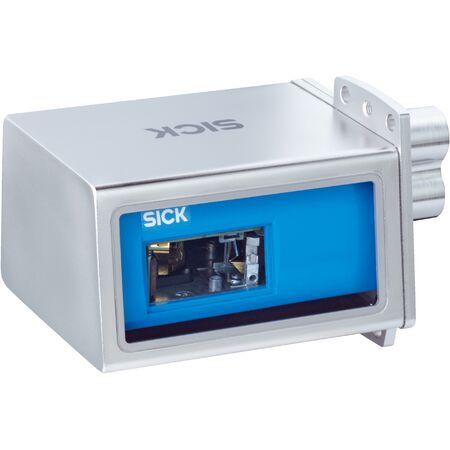

Mid Range Raster Barcode Scanner | Ethernet Connection | IP69K Protection | by SICK
The Mid Range Raster Barcode Scanner is designed for industrial automation, featuring an Ethernet connection and robust IP69K-rated stainless steel housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read all current 1D barcode types, it's perfect for logistics, manufacturing, and quality control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors (17-pin male, 4-pin female)
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 63 mm to 347 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Raster height and number of lines at distance: 15 mm, 8 lines at 200 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Stainless steel
- Window material: Plastic
- Enclosure rating: IP69K
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 854 g (without connecting cable)
- MTBF: 100,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, Pharmacode, and others
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 84mm x 85mm x 154mm
- Weight: 0.854 kg
Key Features
- Mid Range raster scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust stainless steel housing with IP69K protection rating
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and up to 1,500 characters
- Multiple digital inputs and outputs for flexible integration
- Configuration via SOPAS ET software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 4.5 W
- High reliability with MTBF of 100,000 hours reduces electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV620-1831S01 Mid Range Raster Scanner Barcode Reader is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications requiring reliable barcode reading.
