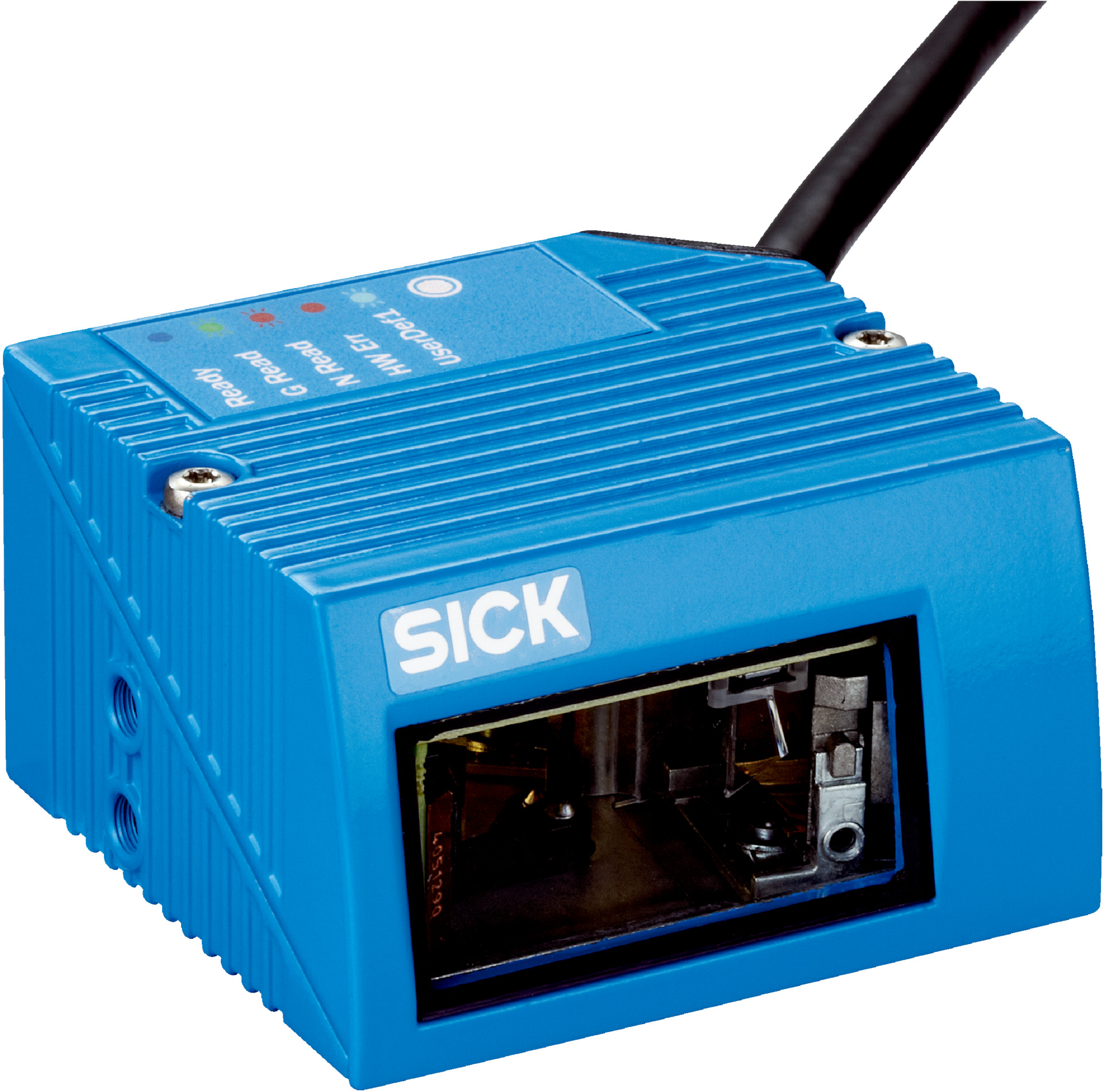

Mid Range Raster Barcode Scanner | IP65 Rated | 400-1000 Hz Scanning Frequency | by SICK
The Mid Range Raster Barcode Scanner CLV610-C1000 is designed for industrial automation, offering high scanning frequencies from 400 Hz to 1000 Hz and the ability to read various 1D barcodes including Code 39 and UPC. With a durable aluminum die cast housing and an IP65 rating, it’s perfect for logistics, manufacturing, and quality assurance applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 265 g including cable
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, UPC, EAN, Pharmacode
- Number of codes per scan: 1 to 10 (Standard decoder)
- Interfaces: RS-232, CAN, digital inputs and outputs
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- EMC: EN 61000-6-4 and EN 61000-6-2 compliant
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.265 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, Pharmacode
- Laser class 2 with visible red light source at 655 nm
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Multiple interface options including RS-232 and CAN
- RGB LED and acoustic indicators for status feedback
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at 2.8 W reduces energy usage
- Durable construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV610-C1000 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
