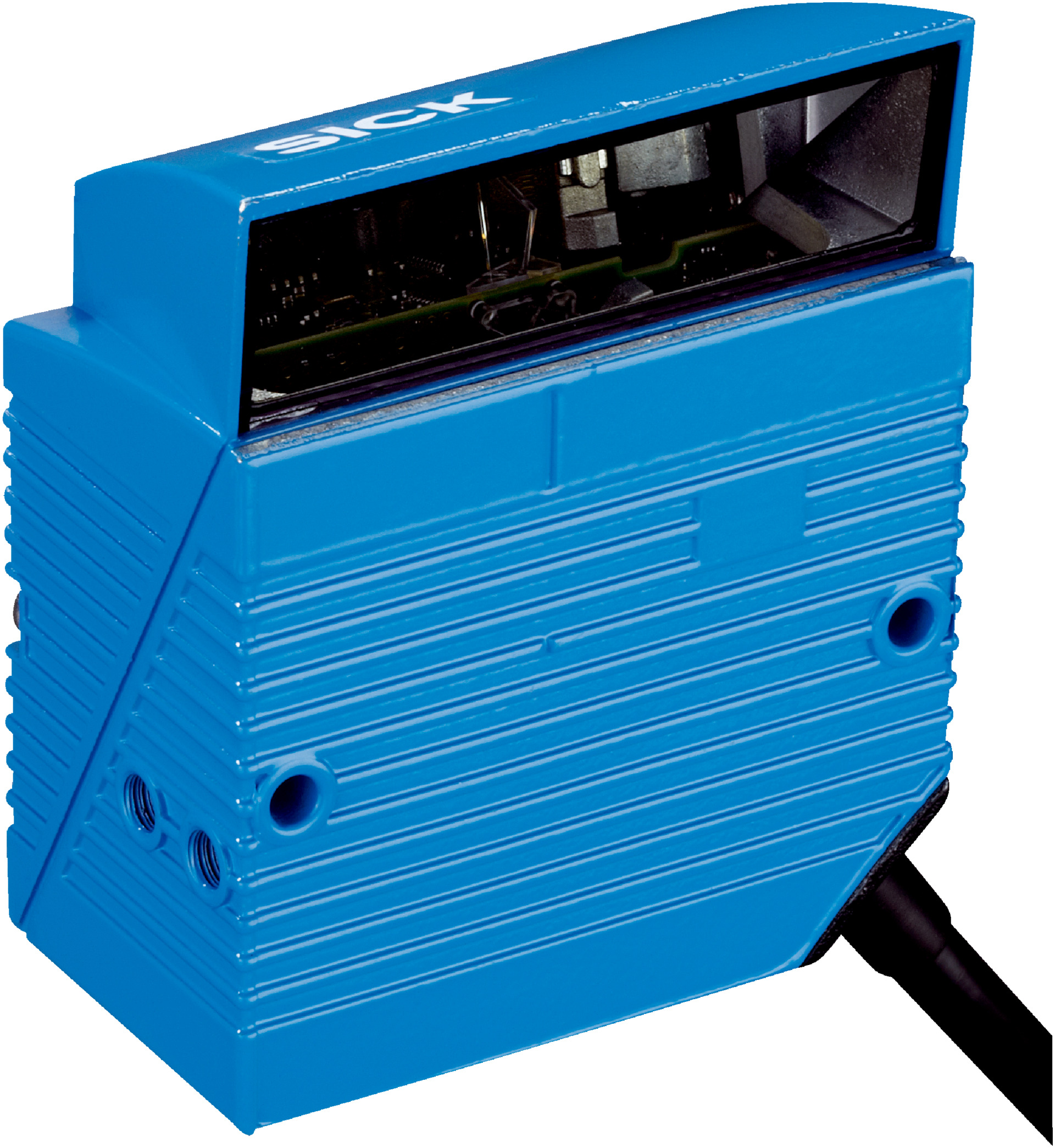

Mid Range Raster Barcode Scanner | IP65 Rated | Reads 1D Codes | High Scanning Frequency | by SICK
The Mid Range Raster Barcode Scanner is designed for industrial automation, offering high scanning frequencies from 400 Hz to 1000 Hz and the ability to read various 1D barcode formats including Code 39 and UPC. With a durable aluminum die cast housing and an IP65 rating, it's perfect for logistics, warehouse management, and manufacturing process control, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Reading distance: 45 mm to 345 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Number of codes per scan: 1 to 10 (Standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1500 (500 for multiplexer function in CAN operation)
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 1 RGB LED, beeper/buzzer
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- EMC: EN 61000-6-4 and EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.295 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Multiple interfaces including RS-232 and CAN
- Equipped with RGB LED and acoustic indicators
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 2.8 W reduces energy usage
- Durable construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

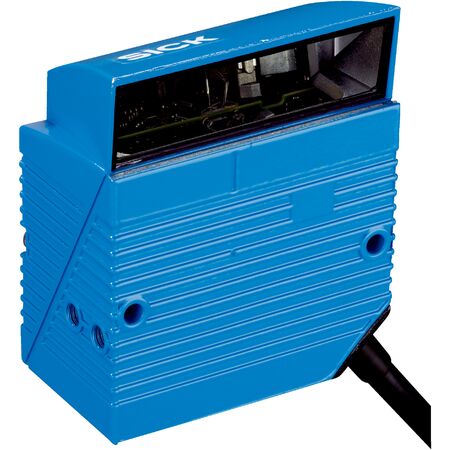

The SICK CLV610-C3000 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
