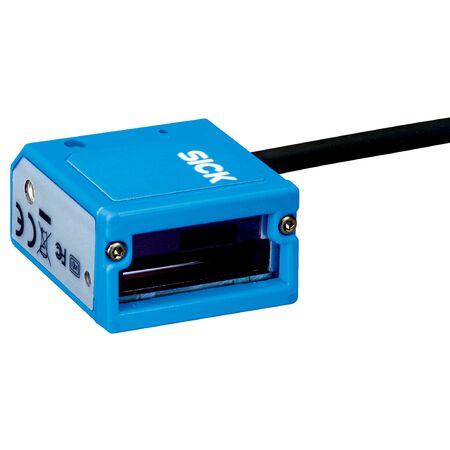

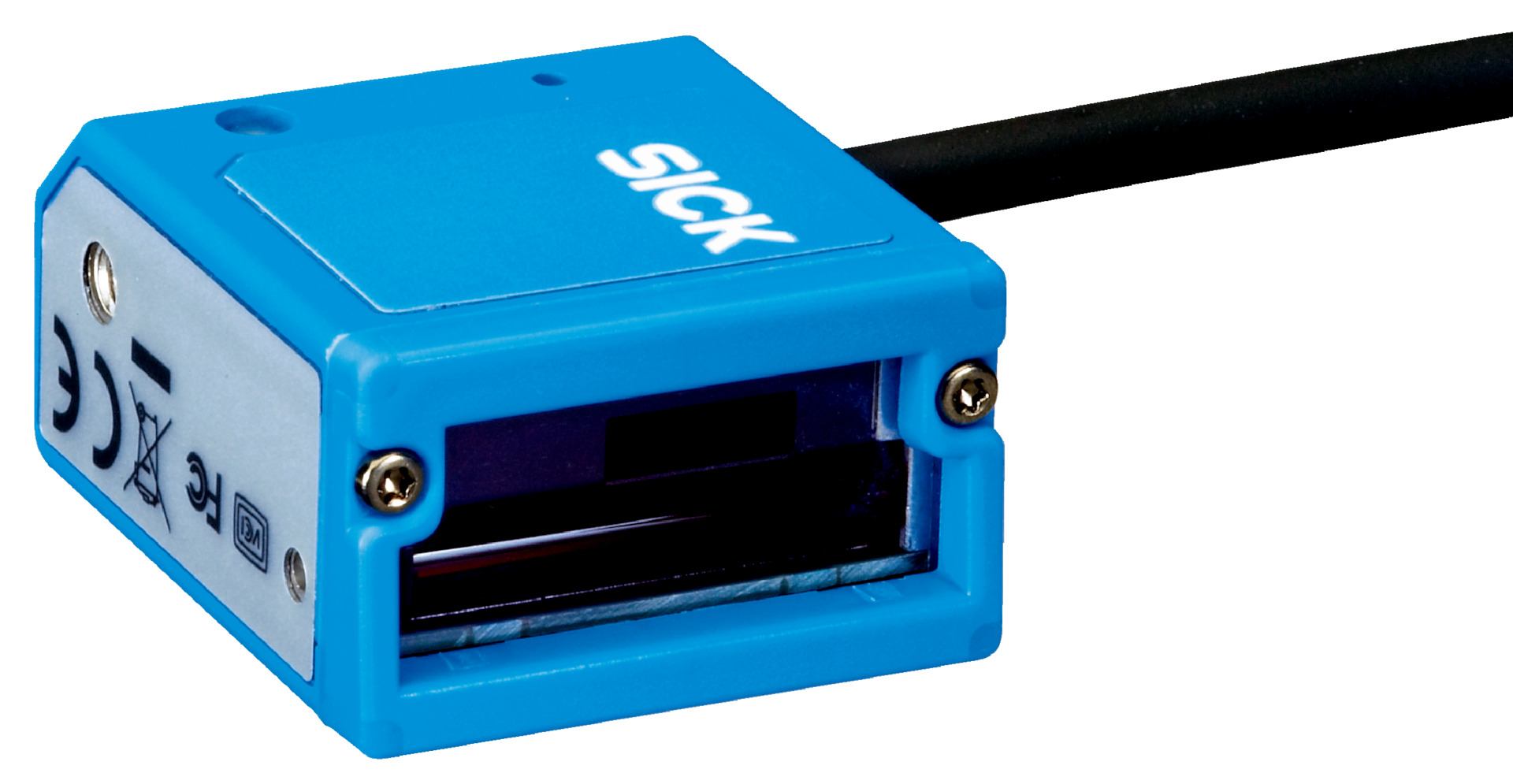

Mid Range USB Line Scanner | Fixed Optical Focus | Reads 1D Barcodes | IP54 Rated | by SICK
The Mid Range USB Line Scanner CLV505-0110 is designed for efficient barcode reading in industrial automation and logistics. With a fixed optical focus and the ability to read various 1D barcode formats, it ensures reliable performance. Its compact design features an IP54 enclosure rating, making it suitable for demanding environments, while the USB connection allows for easy integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range USB Line Scanner | Fixed Optical Focus | Reads 1D Barcodes | IP54 Rated | by SICK
Brand: SICK
SKU: 1046318
Alternatively Known As: SICK USB Line Scanner, CLV505 Barcode Reader, Mid Range Laser Scanner
Technical Specifications
- Version: Mid Range
- Connection type: USB (1 x male USB-A, 1.5 m cable)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 650 nm
- Laser class: 2 (complies with EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 40°
- Reading distance: 60 mm to 330 mm
- Scanning frequency: ≤ 1,000 Hz
- Code resolution: 0.15 mm to 1 mm
- Readable code structures: 1D codes including Code 11, Code 39, Code 128, Code 93, Codabar, JAN, UPC/GTIN/EAN, Interleaved 2 of 5, and others
- Supply voltage: 5 V DC, ± 10%
- Power consumption: Typically 205 to 500 mA
- Housing color: Light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP54
- Protection class: III
- Weight: Approximately 30 g without cable
- MTBF: 10,000 hours
- Electromagnetic compatibility: EN 61000-6-3 (2007-01)
- Operating temperature: 0 °C to +45 °C
- Relative humidity: Up to 90%, non-condensing
- Ambient light immunity: 2,000 lx
- Barcode print contrast (PCS): ≥ 45%
- Indicators: 1 LED optical, beeper/buzzer acoustic
- Dimensions (H x L x W): 17mm x 29mm x 34.5mm
- Weight: 0.1 kg
Key Features
- Mid Range line scanner with fixed optical focus
- USB connection type with 1.5 m male USB-A cable
- Reads 1D barcodes including Code 11, Code 39, Code 128, and more
- Laser class 2 with visible red light spot at 650 nm
- Scanning frequency up to 1,000 Hz
- Compact housing with IP54 enclosure rating
- Light blue plastic housing with protection class III
- Equipped with LED optical indicator and acoustic beeper
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehousing for package tracking
- Manufacturing for product identification
- Retail for inventory management
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption between 205 mA and 500 mA reduces energy usage
- Durable IP54 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV505-0110 Mid Range USB Line Scanner is available for immediate purchase, ideal for industrial and commercial barcode scanning applications.
