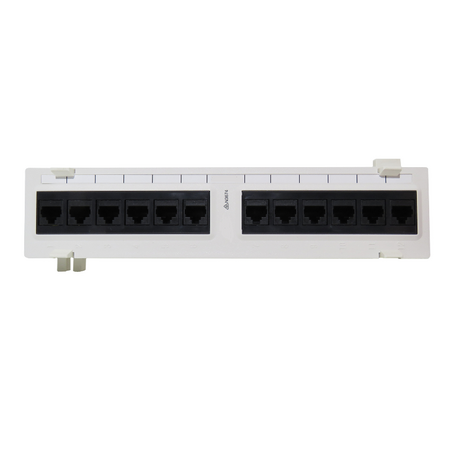

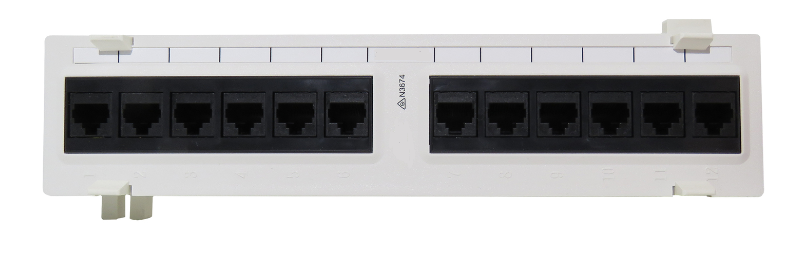

Mini 12 Port Patch Panel Cat6 | Surface Mount | Fireproof ABS by Certech
Mini 12 port patch panel with Cat6 rating and surface mount design—ideal for structured cabling in homes and offices. Built for durability with fireproof ABS material, ensuring safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mini 12 Port Patch Panel Cat6 | Surface Mount | Fireproof ABS by Certech
Brand: CERTECH
SKU: PPMINI12C6B
Alternatively Known As: 12 Port Patch Panel, Cat6 Patch Panel, Surface Mount Patch Panel
Technical Specifications
- Performance meets Cat.6 EIA/TIA 568B.2-1 Standard
- Material: Plastic Body, Fireproof ABS UL-94V0
- RJ-45 Jack Housing: PBT 8P8C 50 micro inches gold plated
- PCB: FR-4 / 1.6mm UL-94-V0
- IDC Pin: Bronze & Tinned
- Label Colour Code: T568A
- Insulation Resistance: 500m ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps
- DC Resistance: 0.1 ohm (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz / 1min
- IDC Punch Down Cycle: Over 250 cycles (min.)
- RJ-45 Jack Insertion Cycle: Over 2000 cycles (min.)
- Operation Temperature: -40~+70°C
- Dimensions (H x L x W): 100mm x 200mm x 300mm
- Weight: 0.5 kg
Key Features
- Performance meets Cat.6 EIA/TIA 568B.2-1 Standard
- Fireproof ABS UL-94V0 material for enhanced safety
- RJ-45 Jack Housing with 50 micro inches gold plated contacts
- Durable PCB: FR-4 / 1.6mm UL-94-V0
- High durability with IDC Punch Down Cycle over 250 cycles and RJ-45 Jack Insertion Cycle over 2000 cycles
- Wide operating temperature range from -40 to +70°C
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring structured cabling solutions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Fireproof ABS material ensures safety and durability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Mini 12 Port Surface Mount Patch Panel, Cat6 Rated is available now for immediate purchase. Ideal for structured cabling solutions in residential and commercial spaces.
