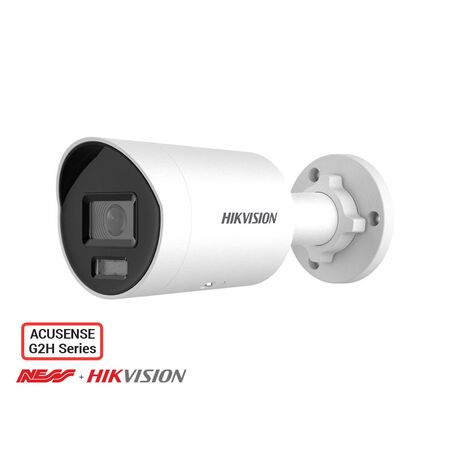

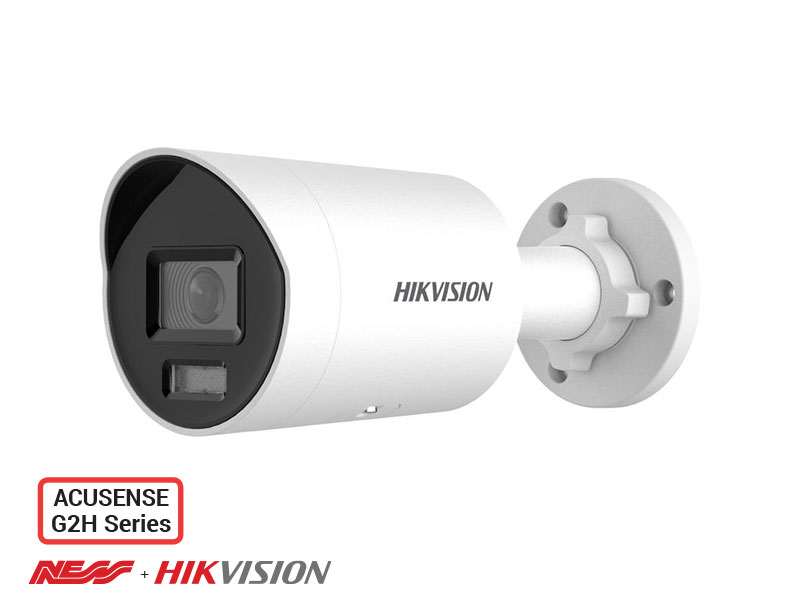

Mini Bullet Camera 8MP 2.8mm Hikvision
Hikvision mini bullet camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2086G2-I, 4K AcuSense Mini Bullet Camera, 8MP IP Bullet Camera
Technical Specifications
- Model Reference: DS-2CD2086G2-I, 2.8mm variant
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3840 × 2160 pixels
- Lens: 2.8mm fixed focal lens, M12 mount
- Field of View: 111° horizontal, 59° vertical, 131° diagonal
- Minimum Illumination: 0.003 Lux at F1.6 with AGC; 0 Lux with IR
- Infrared Range: Up to 40m at 850nm
- Video Compression: H.265, H.265+, H.264 and H.264+
- Network Interface: 10/100 Mbps Ethernet
- Power Supply: 12V DC or PoE 802.3af, Class 3
- Maximum Power Consumption: 7.2W via PoE
- Protection Rating: IP67
- Operating Temperature: -30°C to 60°C
- Material: Metal
- RCM EMC Reference: AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 70mm x 161.7mm x 70mm
- Weight: 0.485 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- 2.8mm wide-angle fixed lens for broad scene coverage
- AcuSense deep-learning technology for improved human and vehicle classification
- Smart IR illumination up to 40m for night-time monitoring
- H.265+ compression to reduce bandwidth and storage requirements
- PoE or 12V DC power options
- IP67-rated housing for outdoor dust and water protection
- Three-axis adjustment for flexible mounting alignment
- Supports backlight compensation, wide dynamic range and day/night switching
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications technician. PoE/network cabling, low-voltage power, weather sealing and system configuration must be completed in accordance with applicable Australian requirements and any state or territory licensing obligations.
Applications
- Residential CCTV and home security systems
- Commercial premises and retail surveillance
- Warehouses, workshops and industrial sites
- Car parks, entrances and perimeter monitoring
- Outdoor monitoring where IP67 protection is required
- Integration with Hikvision NVRs and compatible ONVIF surveillance systems
Standards & Compliance
- RCM EMC compliance reference: AS/NZS CISPR 32:2015
- CCTV system-level guidance: AS/NZS 62676.1.1:2020, where applicable to the complete video surveillance system
Environmental Benefits
- RoHS compliance restricts specified hazardous substances in the electronic assembly
- WEEE requirements support responsible end-of-life handling of electrical and electronic equipment
- H.265+ video compression can reduce network bandwidth and recording-storage energy requirements
- PoE power delivery can simplify cabling and reduce the need for separate power infrastructure
- Durable metal housing and IP67 protection may extend service life and reduce replacement waste
Warranty Information
Australian distributors commonly specify a 3-year back-to-base manufacturer warranty for Hikvision IP cameras. Hikvision’s separate 5-year programme applies only to listed premium project-oriented product series, so the selling distributor should confirm the warranty applicable to this exact model.
Available Now
Available through Hikvision and authorised Australian security, electrical and communications distributors.
