Mini Contactor 2.2kW 3 Pole | 12VDC Coil | 1NC Auxiliary by NHP
Mini contactor with 2.2kW power and 3 poles—ideal for industrial automation and commercial HVAC systems. Built for efficient power management, with 12VDC coil and 1NC auxiliary contact.
Sign in
Please login to continue to your account.

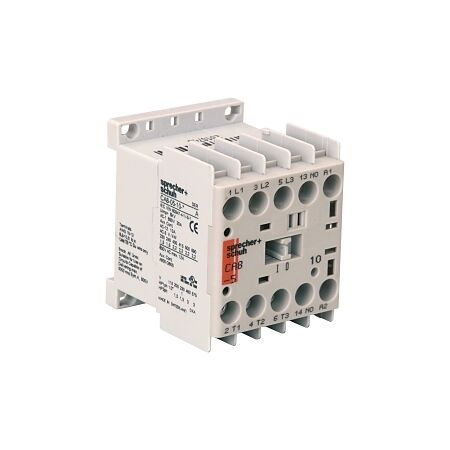

Product Name/Title: S+S CA8 Contactor Mini 2.2kW 3Pole 12VDC Coil 1NC Contact Auxiliary
Brand: NHP
SKU: CA85C0112VDC
Alternatively Known As: Mini Contactor, Power Contactor, 12VDC Contactor
- Number of normally open contacts: 3
- Number of normally closed contacts: 0
- Rated operation current at AC 3, 400V: 4.9 A
- Rated operation power at AC 3, 400V: 2.2 kW
- Rated operation current at AC 1, 400V: 20 A
- Max rated operation voltage: 690 V
- Control supply voltage: 12 V DC
- Number of auxiliary contacts: 1 NC
- Rated operation current at AC 3, 690V: 2.8 A
- Rated operation power at AC 3, 690V: 2.2 kW
- Rated operation power at AC 4, 400V: 0.55 kW
- Power consumption DC coil pickup: 3 W
- Power consumption DC coil hold-in: 3 W
- Type of electrical connection: Screw connection
- Degree of protection: IP20
- Mounting method: Screw mounting
- Dimensions (H x L x W): 56mm x 53mm x 44.9mm
- Weight: 0.2 kg
- 3 Pole contactor with 1 normally closed auxiliary contact.
- Rated for 2.2 kW operation at 400V AC.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Efficient power management reduces energy consumption.
1 year warranty against manufacturing defects.
The S+S CA8 Contactor Mini 2.2kW 3Pole 12VDC Coil 1NC Contact Auxiliary is available now for immediate purchase. Ideal for industrial and commercial applications.
