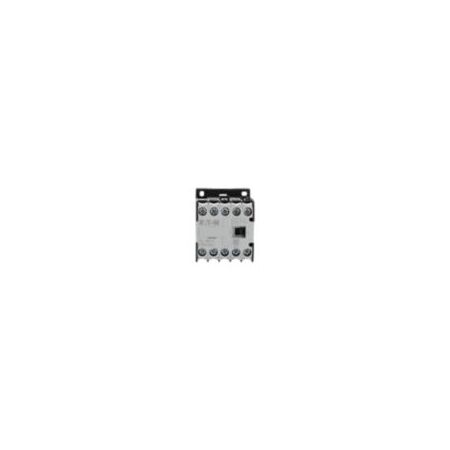

Mini Contactor 24V DC | 3 Pole | 90A Breaking Capacity | 20 Million Operations by Eaton
Mini contactor with 24V DC operation and 3 poles—ideal for motor control and automation. Built for industrial applications, it features a 90A breaking capacity and a mechanical lifespan of 20 million operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mini Contactor 24V DC | 3 Pole | 90A Breaking Capacity | 20 Million Operations by Eaton
Brand: Eaton
SKU: Y7-10343
Alternatively Known As: Eaton DILEM Mini Contactor 24V DC, Eaton DILEM-01-G Contactor, 3 Pole DC Contactor, Eaton Moeller DILEM Contactor
Technical Specifications
- Rated operational voltage: 24 V DC
- Number of poles: 3
- Rated operational power at AC-3, 380/400 V, 50 Hz: 4 kW
- Rated breaking capacity at 220/230 V and 380/400 V: 90 A
- Rated operational current at AC-3, 380 V, 400 V, 415 V: 9 A
- Mechanical lifespan: 20,000,000 operations
- Operating temperature range: -25 °C to 50 °C
- Duty factor: 100%
- Power consumption: 2.3 VA/W at DC
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Shock resistance: 20 g according to IEC/EN 60068-2-27
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 1.5) mm²
- Terminal capacity (solid): 1 x (0.75 - 2.5) mm²
- Tightening torque: 1.2 Nm
- Safe isolation: 300 V AC between coil and contacts
- Dimensions (H x L x W): 58mm x 54mm x 45mm
- Weight: 0.206 kg
Key Features
- Three-pole contactor with 1 normally closed auxiliary contact
- Positive operating contacts to EN 60947-5-1 appendix L
- Screw terminals with tightening torque of 1.2 Nm
- Rated operational power up to 4 kW at 380/400 V AC
- Rated breaking capacity of 90 A at 220/230 V and 380/400 V
- Protection against direct contact when actuated from front (EN 50274)
- Rated impulse withstand voltage of 6000 V AC
- Mechanical lifespan of 20,000,000 operations
- Operating temperature range from -25 °C to 50 °C
- Duty factor 100%
- Shock resistance up to 20 g according to IEC/EN 60068-2-27
- Power consumption 2.3 VA/W at DC
- Safe isolation of 300 V AC between coil and contacts
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Mini contactors for motors and resistive loads
- Suitable for motors with efficiency class IE3
- Control of AC induction motors in starting, switching off, plugging, reversing, and inching
- Non-inductive or slightly inductive loads such as resistance furnaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for high efficiency motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller DILEM-01-G(24VDC) Mini Contactor is available now for immediate purchase. Ideal for industrial motor control and automation applications.
