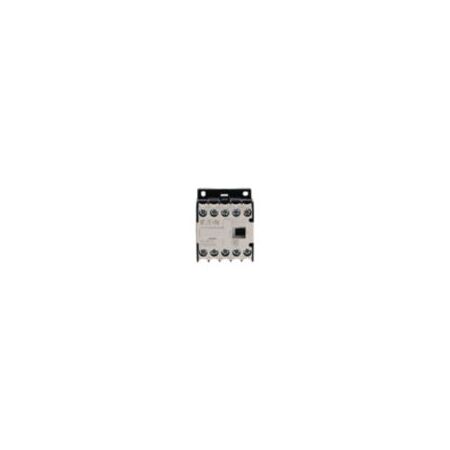

Mini Contactor 3-Pole | 240V AC | 4 kW Power | 90 A Breaking Capacity by Eaton

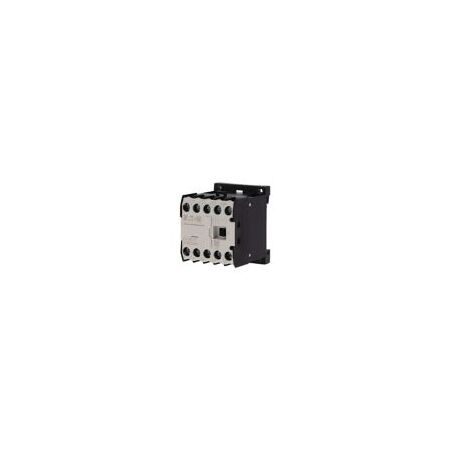

The Eaton DILEM-10 mini contactor features a 3-pole design with a rated operational power of 4 kW at 240V AC. Ideal for motor control applications, it offers a high breaking capacity of 90 A and a long mechanical lifespan of 7 million operations, ensuring reliable performance in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mini Contactor 3-Pole | 240V AC | 4 kW Power | 90 A Breaking Capacity by Eaton
Brand: Eaton
SKU: Y7-10032
Alternatively Known As: Eaton DILEM Mini Contactor, DILEM-10 Contactor, 3-Pole Mini Contactor, Eaton Moeller Contactor
Technical Specifications
- Voltage: 240 V AC, 50 Hz
- Number of poles: 3
- Rated operational power at AC-3, 400 V, 50 Hz: 4 kW
- Rated breaking capacity: 90 A at 220-400 V
- Rated insulation voltage (Ui): 690 V
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Mechanical lifespan: 7,000,000 operations
- Ambient operating temperature: -25 °C to 50 °C
- Power consumption at pick-up (50 Hz): 22 W
- Duty factor: 100%
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 1.5) mm²
- Terminal capacity (solid): 1 x (0.75 - 2.5) mm²
- Tightening torque: 1.2 Nm
- Protection: Finger and back-of-hand proof (EN 50274)
- Dimensions (H x L x W): 58mm x 52mm x 45mm
- Weight: 0.17 kg
Key Features
- 3-pole contactor with normally open (N/O) contacts
- Positive operating contacts to EN 60947-5-1 appendix L
- Screw terminals with tightening torque of 1.2 Nm
- Rated operational power up to 4.3 kW at 415 V, 50 Hz
- Rated breaking capacity up to 90 A at 220-400 V
- Protection against direct contact when actuated from front (EN 50274)
- Mechanical lifespan of up to 7,000,000 operations
- Ambient operating temperature range from -25 °C to 50 °C
- Rated insulation voltage of 690 V and impulse withstand voltage of 6000 V AC
- Power consumption at pick-up 22 W (50 Hz)
- Duty factor 100%
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Mini contactors for motors and resistive loads
- Suitable for motors with efficiency class IE3
- AC induction motor starting, plugging, reversing, inching
- Non-inductive or slightly inductive loads, resistance furnaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILEM-10 Mini Contactor is available for immediate purchase, ideal for motor control and industrial electrical applications.
