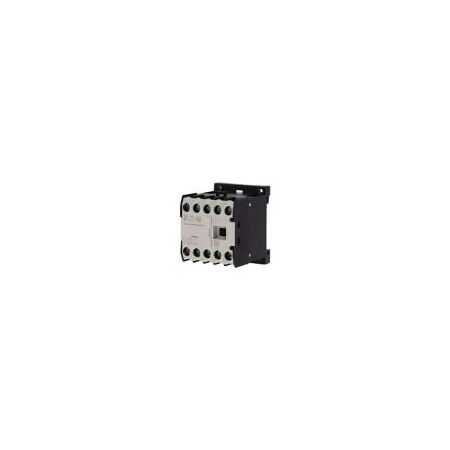

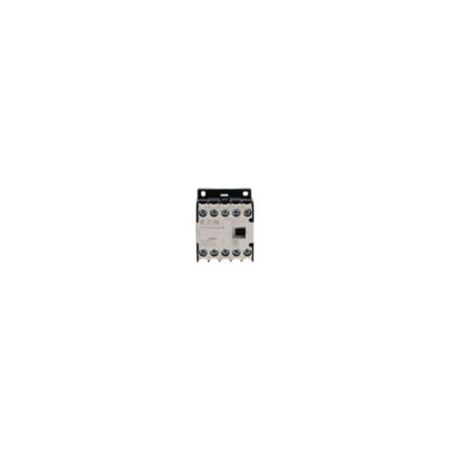

Mini Contactor 3 Pole | 24V DC | 4 kW Power Rating | 90 A Breaking Capacity by Eaton

BRAND: Eaton
SKU: Y7-10213
$179.20 List price: $223.20
+ −
30 Days Return Delivery Options
Mini contactor with 3 poles and 24V DC rated control supply—ideal for industrial motor control and resistive load applications. Built for efficiency, with a 4 kW power rating and a robust mechanical lifespan of 20 million operations.

Product Name/Title: Mini Contactor 3 Pole | 24V DC | 4 kW Power Rating | 90 A Breaking Capacity by Eaton

Brand: Eaton

SKU: Y7-10213

Alternatively Known As: Eaton DILEM Mini Contactor 24V DC, DILEM-10-G Contactor, 3 Pole DC Contactor, Eaton Moeller DILEM Contactor

Technical Specifications
  • Rated operational power: 4 kW at 380/400 V AC (AC-3)
  • Number of poles: 3
  • Contact configuration: 1 Normally Open (N/O)
  • Rated control supply voltage: 24 V DC
  • Rated operational current: 9 A at AC-3, 380/400 V
  • Rated breaking capacity: 90 A at 220/230 V and 380/400 V
  • Rated insulation voltage (Ui): 690 V
  • Rated impulse withstand voltage (Uimp): 6000 V AC
  • Mechanical lifespan: 20,000,000 operations
  • Operating temperature range: -25 °C to 50 °C
  • Terminal capacity (flexible with ferrule): 1 x (0.75 - 1.5) mm², 2 x (0.75 - 1.5) mm²
  • Terminal capacity (solid): 2 x (0.75 - 2.5) mm², 1 x (0.75 - 2.5) mm²
  • Tightening torque: 1.2 Nm
  • Switching time (DC operated, make contacts): 26-35 ms closing delay, 15-25 ms opening delay
  • Duty factor: 100%
  • Power consumption: 2.3 VA/W at DC
  • Dimensions (H x L x W): 58mm x 54mm x 45mm
  • Weight: 0.206 kg
Key Features
  • Three-pole contactor with normally open (N/O) contacts
  • Rated operational power up to 4 kW at 380/400 V AC
  • Positive operating contacts to EN 60947-5-1 appendix L
  • Screw terminals with 1.2 Nm tightening torque
  • Protection against direct contact when actuated from front (EN 50274)
  • Rated impulse withstand voltage of 6000 V AC
  • Mechanical lifespan of 20,000,000 operations
  • Operating frequency up to 9000 mechanical operations per hour
  • Ambient operating temperature range from -25 °C to 50 °C
  • Auxiliary contact module fitted
  • Rated control supply voltage 24 V DC
  • Short-circuit current rating 5 kA (basic rating)
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal device performance.
Applications
  • Mini contactors for motors and resistive loads
  • Suitable for motors with efficiency class IE3
  • Industrial motor control and switching applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed for efficient motor control reducing energy waste
  • Long mechanical lifespan reduces replacement frequency and waste
Warranty Information

Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.

Available Now

The Eaton Moeller DILEM-10-G(24VDC) Mini Contactor is available now for immediate purchase. Ideal for industrial motor control and resistive load switching applications.
