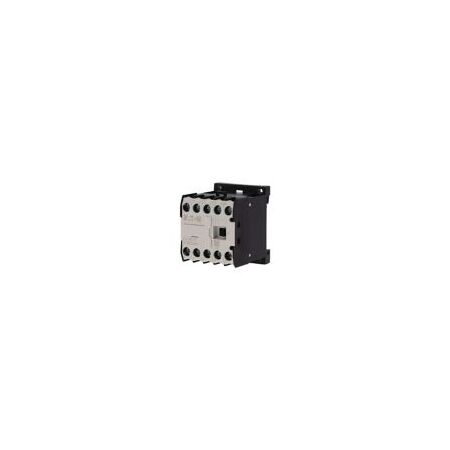

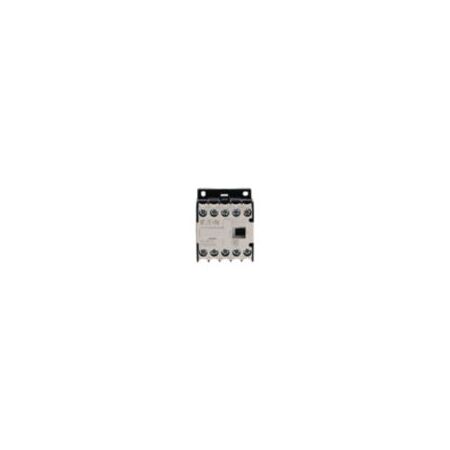

Mini Contactor DILEM-10 | 415V 50Hz | 22A Current | 4.3kW Power by Eaton
The DILEM-10 mini contactor is designed for efficient motor control, rated for 415V at 50Hz and capable of handling up to 22A. Ideal for industrial and commercial applications, it features a high mechanical lifespan of 10 million operations and secure screw terminals for reliable wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mini Contactor DILEM-10 | 415V 50Hz | 22A Current | 4.3kW Power by Eaton
Brand: Eaton
SKU: Y7-51789
Alternatively Known As: Mini Contactor, Motor Contactor, Eaton DILEM Contactor, 3-Pole Contactor
Technical Specifications
- Rated operational power at AC-3, 415 V, 50 Hz: 4.3 kW
- Rated operational current (Ie) at AC-1, 400 V: 22 A
- Rated breaking capacity at 380/400 V: 90 A
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 9000 mechanical operations per hour
- Duty factor: 100%
- Overvoltage category: III
- Pollution degree: 3
- Terminal capacity (solid): 1 x (0.75 - 2.5) mm²
- Tightening torque: 1.2 Nm
- Power consumption pick-up at 50 Hz: 22 W
- Power consumption sealing at 50 Hz: 1.8 W
- Switching time (make contacts closing delay): 14-21 ms
- Switching time (make contacts opening delay): 8-18 ms
- Dimensions (H x L x W): 58mm x 52mm x 45mm
- Weight: 0.17 kg
Key Features
- Three-pole mini contactor with normally open contact
- Positive operating contacts to EN 60947-5-1 appendix L
- Screw terminals for secure wiring
- Rated operational power up to 4.3 kW at 415 V 50 Hz
- High mechanical lifespan of up to 10,000,000 operations
- Protection against direct contact when actuated from front (EN 50274)
- Rated impulse withstand voltage of 6000 V AC
- Suitable for AC operation at 415 V 50 Hz and 480 V 60 Hz
- Overvoltage category III and pollution degree 3
- Rated operational current up to 22 A at AC-1
- Short-circuit current rating of 5 kA
- Duty factor 100%
- Auxiliary contact included
Professional Installation Requirements
- Installation must be performed by a qualified electrician following local electrical codes and Eaton installation guidelines.
Applications
- Motor control for industrial and commercial applications
- Resistive load switching
- Suitable for motors with efficiency class IE3
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILEM-10 Mini Contactor is available for immediate purchase, ideal for industrial motor control and resistive load applications.
