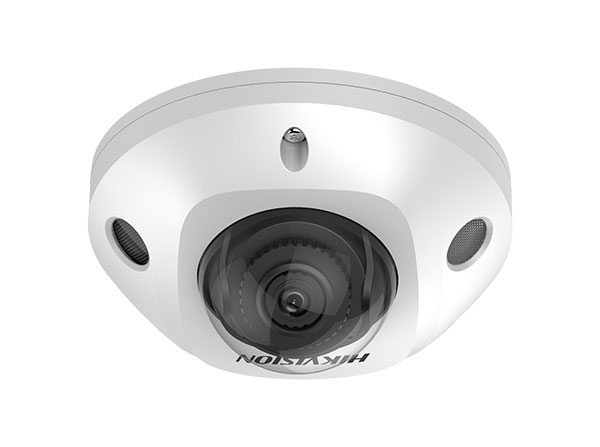

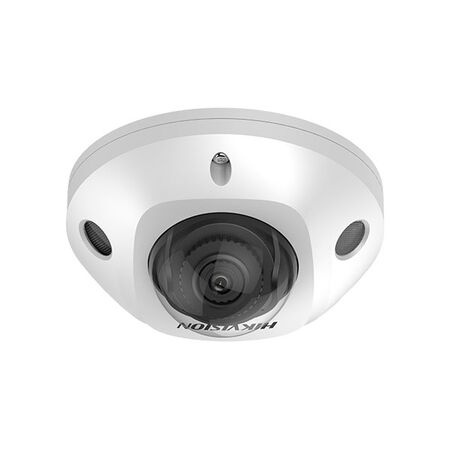

Mini Dome Camera 4MP WiFi 2.8mm Hikvision
Hikvision mini dome camera features 4MP resolution, WiFi connectivity and a 2.8mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP WiFi Mini Dome Camera, Hikvision AcuSense Fixed Mini Dome IP Camera, DS-2CD2543G2-IWS 2.8mm
Technical Specifications
- Image Resolution: 4MP, 2688 × 1520 pixels
- Image Sensor: 1/3-inch progressive-scan CMOS
- Lens: Fixed 2.8mm focal length, F1.6 aperture
- Field of View: Horizontal 104.3°, vertical 55.9°, diagonal 123.8°
- Video Compression: H.265, H.264, H.265+ and H.264+
- Frame Rate: Up to 25fps at 50Hz or 30fps at 60Hz
- Wireless Connectivity: WiFi 802.11b/g/n, WPA/WPA2 security
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power Supply: 12V DC or PoE 802.3af Class 3
- Maximum Power Consumption: 6W via 12V DC or 7W via PoE
- Night Vision: Infrared illumination up to 30m
- Audio: Built-in microphone
- Storage: MicroSD card support up to 512GB
- Ingress and Impact Protection: IP67 and IK08
- Operating Temperature: -30°C to 60°C
- Material: Aluminium base with plastic cover
- Dimensions (H x L x W): 57.4mm x 110mm x 110mm
- Weight: 0.38 kg
Key Features
- 4MP image resolution for detailed CCTV monitoring
- 2.8mm wide-angle lens suitable for general surveillance coverage
- WiFi connectivity for flexible network installation
- PoE support for combined network and power connection
- Infrared night vision with up to 30m range
- Built-in microphone for audio monitoring
- Human and vehicle target classification for motion events
- Line-crossing and intrusion detection
- MicroSD card recording support up to 512GB
- IP67 weather resistance and IK08 impact protection
Professional Installation Requirements
- Installation should be completed by a qualified security or communications technician. Any mains-connected power supply must be installed in accordance with applicable Australian electrical requirements by a licensed electrician where required.
Applications
- Residential CCTV systems
- Commercial premises and offices
- Retail shops and warehouses
- Entryways, corridors and reception areas
- Outdoor surveillance where weather-resistant installation is required
- Remote monitoring through compatible Hikvision network platforms
Standards & Compliance
- AS/NZS 4268 for WiFi and short-range radio equipment
- AS/NZS 62368.1 may apply to the associated audiovisual, information and communications technology power equipment; verify the final Australian product compliance documentation before installation
Environmental Benefits
- PoE operation can reduce the need for separate power cabling during installation
- Efficient networked surveillance can reduce the need for additional recording hardware at each camera location
- Durable IP67 and IK08 construction can extend service life and reduce replacement waste
Warranty Information
Hikvision network cameras supplied through authorised Australian distribution channels are commonly covered by a 3-year manufacturer warranty. Confirm the applicable warranty for the exact Australian model and sales channel before purchase.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to model and regional stock availability.
