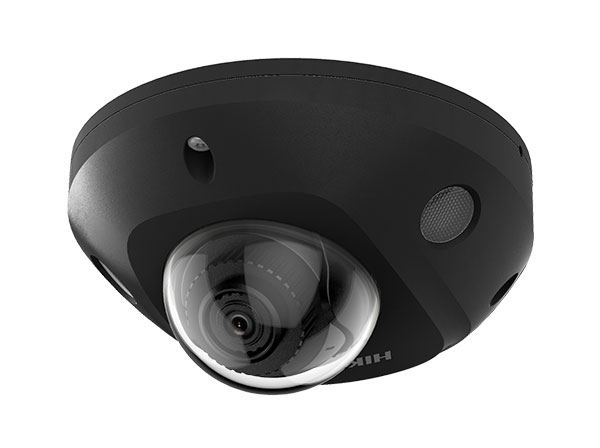

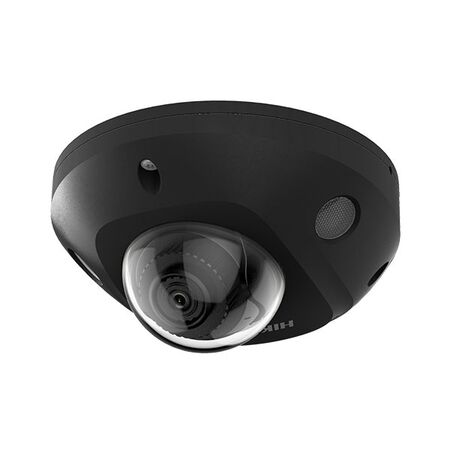

Mini Dome Camera 6MP 2.8mm Black AcuSense Hikvision
Hikvision mini dome camera features 6MP resolution, a 2.8mm lens and AcuSense. Ideal for CCTV installs needing compact black dome cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2563G2-IS Black, 6MP AcuSense Mini Dome IP Camera, Fixed Dome Network Camera
Technical Specifications
- Model: DS-2CD2563G2-IS, 2.8mm black variant
- Image Resolution: 3200 x 1800 pixels, 6MP
- Image Sensor: 1/2.4 inch progressive scan CMOS
- Lens: Fixed 2.8mm focal length, M12 mount
- Field of View: 105° horizontal, 55° vertical, 127° diagonal
- Minimum Illumination: 0.005 lux colour at F1.6; 0 lux black and white with IR
- Infrared Range: Up to 30m, 850nm IR
- Wide Dynamic Range: 120dB true WDR
- Video Compression: H.265, H.264, H.265+, H.264+ and MJPEG
- Frame Rate: Up to 25fps at 50Hz or 30fps at 60Hz
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Storage: Built-in microSD card slot, up to 512GB
- Power: 12VDC or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 7W via PoE
- Protection Rating: IP67 weather and dust resistance; IK08 impact resistance
- Audio and Alarm: Built-in microphone, audio input/output and alarm interfaces
- Dimensions (H x L x W): 57.4mm x 110mm x 110mm
- Weight: 0.375 kg
Key Features
- 6MP image resolution for detailed surveillance footage
- AcuSense deep-learning classification of human and vehicle targets
- Fixed 2.8mm lens providing a wide 105° horizontal viewing angle
- 120dB WDR for improved imaging in high-contrast lighting
- Smart IR illumination up to 30m for night-time monitoring
- H.265+ compression to reduce bandwidth and storage requirements
- MicroSD recording support up to 512GB
- IP67-rated housing for outdoor and semi-outdoor installations
- IK08 vandal-resistant construction
- Black finish for discreet CCTV installations
Professional Installation Requirements
- Installation should be completed by a competent CCTV or security systems technician. Network, PoE and recording configuration must follow the manufacturer's instructions and applicable Australian electrical and communications requirements.
Applications
- Residential security and surveillance
- Commercial premises and retail stores
- Office buildings and warehouses
- Schools, healthcare facilities and public buildings
- Outdoor entrances, walkways and building perimeters
- CCTV systems requiring human and vehicle classification
Standards & Compliance
- RCM compliance to AS/NZS CISPR 32:2015 is specified by the manufacturer
- Applicable to video surveillance system requirements under AS/NZS 62676.1.1:2020
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with conventional codecs
- RoHS and WEEE environmental compliance declarations are provided by the manufacturer
- IP67 and IK08 protection can support longer service life and reduce replacement waste
- Aluminium base and plastic cover components can be separated for appropriate end-of-life recycling where local facilities accept them
Warranty Information
Hikvision Australia warranty and RMA support are provided through authorised distribution partners; the applicable warranty period is subject to the product warranty terms and original purchase documentation. The 5-year premium project warranty does not list this standard AcuSense mini dome series.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distribution channels.
