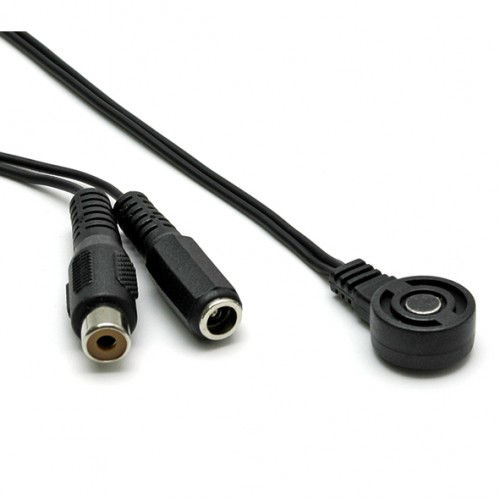

Mini Dynamic CCTV Microphone Ness
Ness mini dynamic CCTV microphone features a dynamic microphone element and a mini size. Ideal for CCTV audio monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness Mini CCTV Microphone, Ness CCTV Audio Microphone, Ness SKU 100-403
Technical Specifications
- Microphone Type: Dynamic CCTV microphone with pre-amplifier
- Power Input: 12V DC
- Current Consumption: 20mA
- Frequency Response: 20Hz–10kHz
- Lead Length: 500mm
- Construction: Acoustically neutral rubber pellet with flying leads and connectors
- Product Code: 100-403
- Dimensions (H x L x W): 8mm x 15mm x 15mm
- Weight: 0.1 kg
Key Features
- Compact microphone for discreet CCTV audio monitoring
- Dynamic microphone element with integrated pre-amplifier
- 12V DC operation for integration with compatible CCTV systems
- Supplied with flying leads and connectors for power and audio output
- 500mm lead length for flexible installation
- Small 15 x 8mm microphone body
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or security technician. Connect only to a compatible regulated 12V DC supply and follow the CCTV recorder or camera manufacturer's wiring instructions.
Applications
- CCTV audio monitoring
- Security camera audio capture
- Discreet indoor surveillance installations
- Integration with compatible CCTV recorders and camera systems
Environmental Benefits
- Low operating power consumption of approximately 0.24W
- Compact construction reduces material use compared with larger microphone assemblies
- Durable installation component that can reduce replacement waste over the service life of a CCTV system
Warranty Information
Ness Corporation's general warranty period for Ness-manufactured or supplied products is 3 years from the date of purchase, unless otherwise specified. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness Corporation and authorised Australian security and CCTV distributors.
