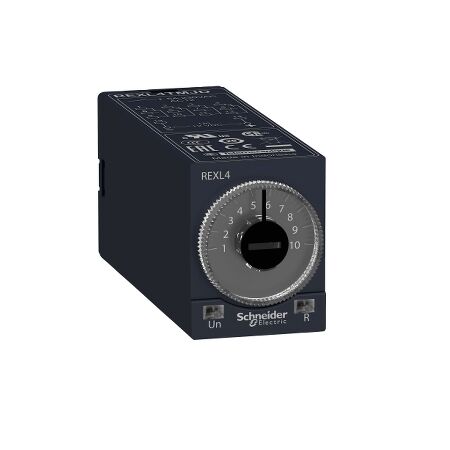

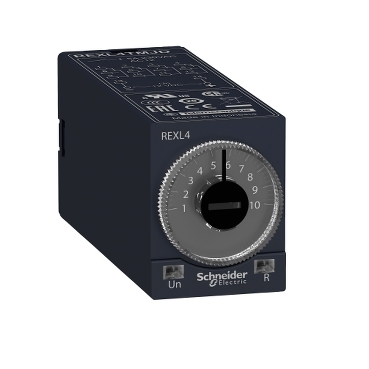

Mini Plug-in Timer 4C/O 24VDC | 4 Changeover Contacts | LED Status Indication | by Clipsal
The Mini Plug-in Timer 4C/O 24VDC is designed for efficient automation in control circuits and building management systems. With 4 changeover contacts and LED status indication, this compact timer relay ensures high switching capacity and reliable performance. Ideal for industrial applications, it helps reduce energy consumption while providing precise control over equipment run times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mini Plug-in Timer 4C/O 24VDC | 4 Changeover Contacts | LED Status Indication | by Clipsal
Brand: Clipsal
SKU: SCHREXL4TMBD
Alternatively Known As: Timer relay, plug-in timer, 4C/O timer relay, 24VDC timer, Clipsal timer relay
Technical Specifications
- Contact configuration: 4 changeover (4C/O)
- Coil voltage: 24V DC
- Contact rating: 5A at 250V AC/30V DC
- Mounting: Plug-in (DIN rail or panel)
- Status indication: LED
- Operating temperature: -20°C to +55°C
- Electrical life: 100,000 operations
- Mechanical life: 10,000,000 operations
- Dimensions (H x L x W): 78mm x 28mm x 21mm
- Weight: 0.12 kg
Key Features
- Miniature plug-in timer relay
- 4 changeover (C/O) contacts
- 24V DC coil voltage
- DIN rail or panel mounting
- LED status indication
- High switching capacity
- Compact design for space-saving installation
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure correct wiring and safe operation.
Applications
- Industrial automation panels
- Control circuits
- Building management systems
- Lighting control
- HVAC systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables energy-saving automation by controlling equipment run times
- Reduces unnecessary power consumption in industrial and commercial applications
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Mini Plug-in Timer 4C/O 24VDC (SCHREXL4TMBD) is available for immediate purchase. Ideal for automation, control panels, and building management systems.
