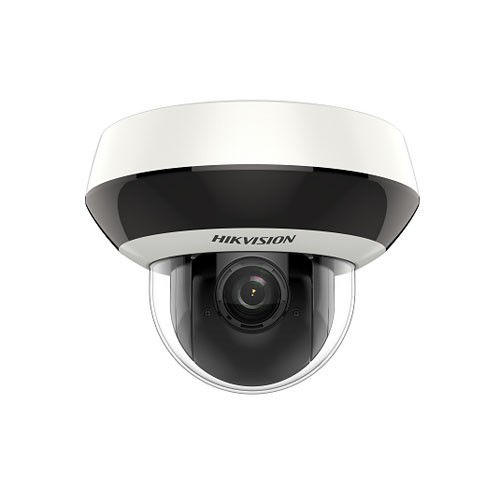

Mini PTZ Camera 4MP 2.8-12mm Hikvision
Hikvision mini PTZ camera features 4MP resolution and a 2.8-12mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP Mini PTZ Camera, 4MP Network Speed Dome, 4x Optical Zoom PTZ Camera
Technical Specifications
- Image Resolution: 4MP, up to 2560 × 1440
- Image Sensor: 1/2.8-inch progressive scan CMOS
- Lens: 2.8–12mm motorised varifocal lens
- Optical Zoom: 4x
- Digital Zoom: 16x
- Field of View: 96.7° to 31.6° horizontal
- Pan Range: 0° to 355°
- Tilt Range: 0° to 90°
- Infrared Distance: Up to 20m
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Wide Dynamic Range: 120dB WDR
- Storage: MicroSD, SDHC or SDXC up to 256GB
- Network Interface: 10/100 Mbps RJ45 Ethernet with PoE
- Power Supply: 12V DC or PoE
- Maximum Power Consumption: 12W
- Ingress Protection: IP66
- Impact Protection: IK10
- Audio: Built-in microphone with audio input and output
- Dimensions (H x L x W): 101.7mm x 130.7mm x 130.7mm
- Weight: 0.53 kg
Key Features
- 4MP imaging for detailed surveillance footage
- 2.8–12mm motorised varifocal lens with 4x optical zoom
- Pan, tilt and zoom control for broad-area monitoring
- Up to 20m infrared illumination with Smart IR
- 120dB WDR, 3D DNR, HLC and electronic image stabilisation
- Supports H.265+ compression to reduce bandwidth and storage requirements
- MicroSD card recording up to 256GB
- PoE support for combined power and network connection
- IP66 weather-resistant housing and IK10 impact resistance
- Supports Hik-Connect, ONVIF and network video management platforms
Professional Installation Requirements
- Installation should be performed by a qualified CCTV or network technician. Where a separate mains-powered supply is installed, electrical work must be completed by a licensed electrician. Network cabling should comply with applicable Australian cabling requirements, including AS/CA S009 where relevant.
Applications
- Indoor and outdoor CCTV surveillance
- Retail, commercial and office security
- Building entrances, foyers and car parks
- Warehouses, education facilities and public areas
- Security installations requiring remote pan, tilt and zoom control
Standards & Compliance
- AS/NZS 62676.1.1:2020: Video surveillance system general requirements
- AS/NZS 62676.1.2:2020: Video transmission performance requirements
- AS/NZS 62676.2.1:2020: Video transmission protocols
- AS/NZS 62676.3:2020: Analogue and digital video interfaces
- AS/NZS 62676.4:2020: Video surveillance application guidelines
- AS/NZS 62676.5:2020: Camera device data specifications and image quality performance
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording storage requirements compared with older codecs
- PoE connectivity can reduce cabling and associated installation materials
- IP66 and IK10 protection support longer service life and reduce premature replacement waste
- Low maximum power consumption of approximately 12W supports efficient continuous operation
Warranty Information
Typically supplied with a 3-year back-to-base manufacturer warranty for Hikvision cameras through authorised Australian distribution channels; confirm coverage and regional eligibility at purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors, subject to current model and regional stock.
