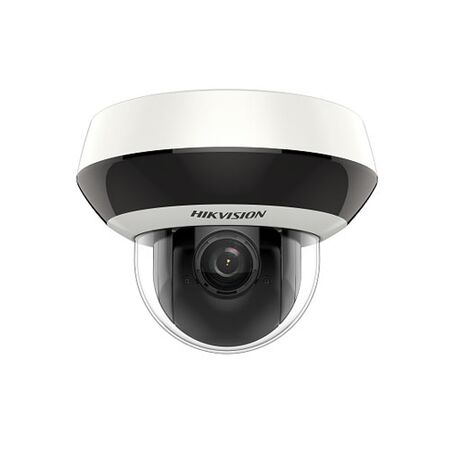

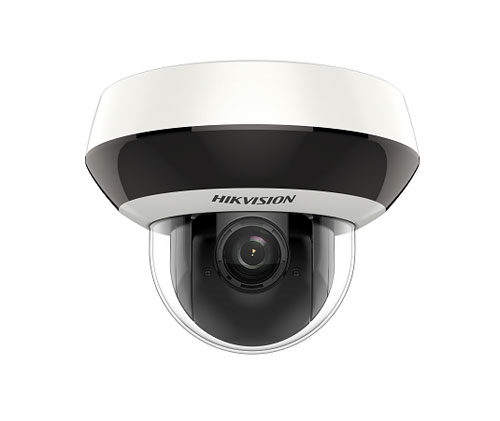

Mini PTZ Camera 4MP WiFi 4X Hikvision
Hikvision mini PTZ camera features 4MP resolution, WiFi and 4X zoom. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP Mini PTZ Camera, Hikvision 4× Wi-Fi PTZ Camera, DS-2DE2A404IW-DE3/W(S6)
Technical Specifications
- Model: DS-2DE2A404IW-DE3/W(S6)
- Resolution: 2560 × 1440 pixels at up to 25 fps
- Image Sensor: 1/2.8-inch progressive-scan CMOS
- Optical Zoom: 4×
- Digital Zoom: 16×
- Lens: 2.8–12 mm motorised varifocal lens
- Field of View: 96.7° to 31.6° horizontal
- Wide Dynamic Range: 120 dB
- Minimum Illumination: 0.005 lux colour; 0.001 lux monochrome; 0 lux with IR
- IR Range: Up to 20 m
- Wireless: Wi-Fi connectivity supported
- Storage: MicroSD, SDHC or SDXC up to 256 GB
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Audio: Built-in microphone with line input and line output
- Power: 12 VDC, maximum 11.2 W, or PoE 802.3af
- Operating Temperature: -20 °C to 60 °C
- Protection: IP66 and IK10
- Dimensions (H x L x W): 101.7mm x 130.7mm x 130.7mm
- Weight: 0.53 kg
Key Features
- Pan, tilt and 4× optical zoom for monitoring defined areas
- Powered-by-DarkFighter low-light imaging technology
- 120 dB WDR for scenes with strong backlighting
- Up to 20 m infrared night vision
- Wi-Fi connection supports flexible installation where suitable network coverage is available
- Built-in microphone for audio capture
- Motion detection, face detection, line crossing and intrusion detection
- IP66 weather and dust resistance with IK10 vandal resistance
- Hikvision identifies the model as a 4MP 4× outdoor IR Wi-Fi mini dome PTZ camera. ([pro-av.hikvision.com](https://pro-av.hikvision.com/mena-en/products/IP-Products/PTZ-Cameras/Value-Series/ds-2de2a404iw-de3-w-s6-/?utm_source=openai))
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or communications installer. Use the specified 12 VDC supply or compatible PoE equipment; any fixed mains wiring or associated electrical work must comply with applicable Australian electrical requirements and be performed by an appropriately licensed person.
Applications
- Residential CCTV and security systems
- Small commercial premises and offices
- Retail stores, restaurants and hospitality venues
- Corridor and entrance monitoring
- Indoor or sheltered outdoor surveillance installations
- Remote monitoring where Wi-Fi connectivity is suitable
Standards & Compliance
- AS/NZS 4268:2017 is applicable to Wi-Fi radio equipment and systems; verify the RCM and Australian-market compliance documentation for the supplied unit. ([legislation.gov.au](https://www.legislation.gov.au/F2021L00661/2026-01-16/2026-01-16/text/original/epub/OEBPS/document_1/document_1.html?utm_source=openai))
- AS/NZS 3000:2018 applies to associated Australian electrical installation work, rather than establishing camera performance compliance. ([worksafe.qld.gov.au](https://www.worksafe.qld.gov.au/news-and-events/newsletters/esafe-newsletters/esafe-editions/esafe-electrical/2023-newsletters/july-2023/need-help-with-consumers-purchasing-electrical-appliances-online?utm_source=openai))
Environmental Benefits
- IP66 and IK10 protection can help extend service life and reduce premature replacement waste
- Network and microSD recording can reduce the need for separate recording hardware in suitable installations
- Electronic components should be disposed of through an approved e-waste recycling stream at end of life
Warranty Information
Hikvision camera products supplied through Australian authorised distribution channels are commonly covered by a 3-year manufacturer warranty; confirm the exact warranty term, channel eligibility and model status with the Australian supplier before purchase. ([arcip.com.au](https://arcip.com.au/warranty-support?utm_source=openai))
Available Now
The DS-2DE2A404IW-DE3/W(S6) is listed by Hikvision as discontinued, so availability should be confirmed with Hikvision or an authorised Australian distributor. ([pro-av.hikvision.com](https://pro-av.hikvision.com/mena-en/products/IP-Products/PTZ-Cameras/Value-Series/ds-2de2a404iw-de3-w-s6-/?utm_source=openai))
