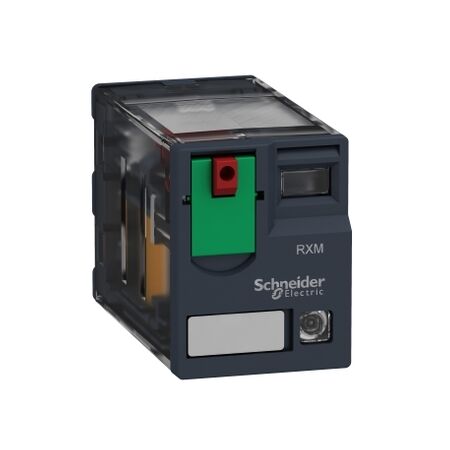

Mini Relay LED 4C/O 240VAC | 4 Changeover Contacts | LED Indicator | Compact Design | @1 | by Clipsal
The Mini Relay LED 4C/O 240VAC is a versatile relay featuring 4 changeover contacts and an LED indicator for coil status. Perfect for industrial automation and control circuits, this compact plug-in relay ensures reliable switching performance with a 6A contact rating. Designed for professional installation, it meets essential safety standards and is ideal for building management systems and HVAC applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mini Relay LED 4C/O 240VAC | 4 Changeover Contacts | LED Indicator | Compact Design | @1 | by Clipsal
Brand: Clipsal
SKU: SCHRXM4AB2P7
Alternatively Known As: Harmony RXM4AB2P7, 4 Pole Miniature Relay, 4C/O Relay 240V AC, Plug-in Relay with LED, Schneider RXM Relay
Technical Specifications
- Contact configuration: 4 C/O (4PDT)
- Coil voltage: 230-240V AC
- Contact rating: 6A at 250V AC/30V DC
- LED indicator for coil status
- Mechanical life: 10,000,000 operations
- Electrical life: 100,000 operations at rated load
- Operating temperature: -40°C to +55°C
- Dielectric strength: 2,500V AC (between coil and contacts)
- Mounting: Plug-in socket
- Dimensions (H x L x W): 35.5mm x 28.5mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay with 4 changeover (C/O) contacts
- LED indicator for coil status
- 230-240V AC coil voltage
- 6A contact rating
- Compact design for space-saving installation
- Reliable switching performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure correct wiring and safety compliance.
Applications
- Industrial automation panels
- Building management systems
- Control circuits
- Lighting control
- HVAC systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED indicator reduces unnecessary power consumption.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Mini Relay LED 4C/O 240VAC (SCHRXM4AB2P7) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
