Mini Straight Female Receptacle | 5 Pin Configuration | 16 AWG PVC Insulated | 1/2 x 14 NPT Thread | by Allen-Bradley
Mini Straight Female Receptacle | 5 Pin Configuration | 16 AWG PVC Insulated | 1/2 x 14 NPT Thread | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

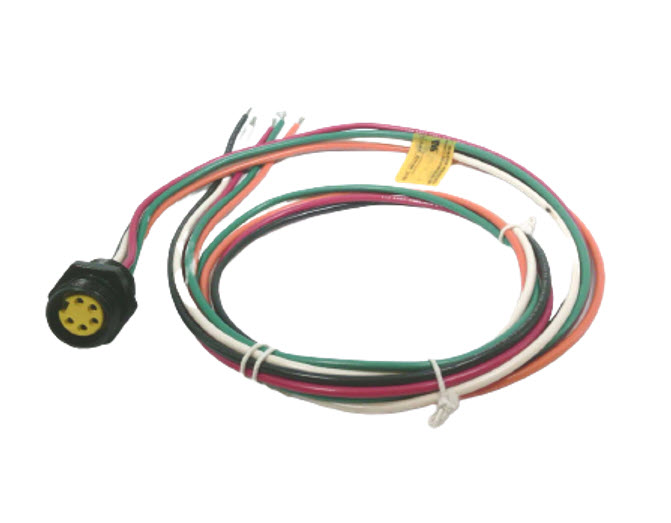

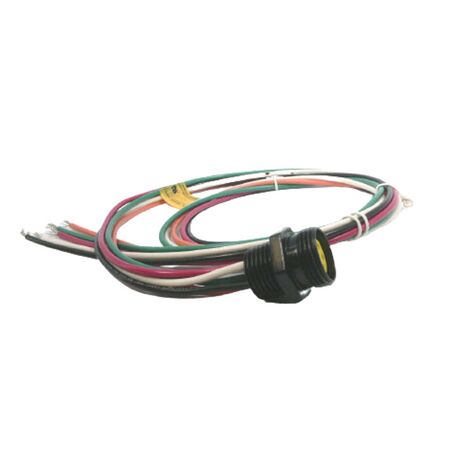

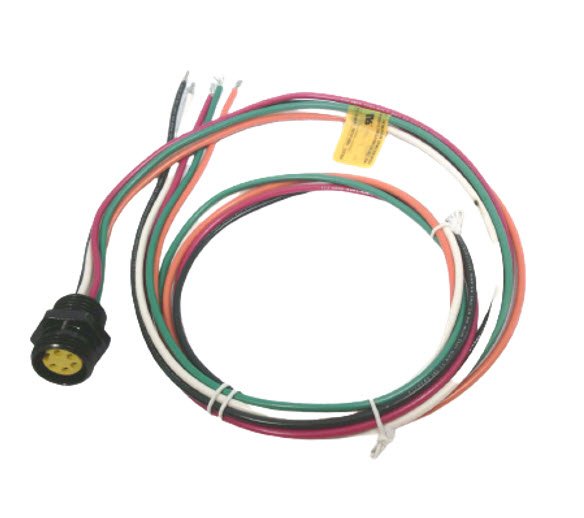

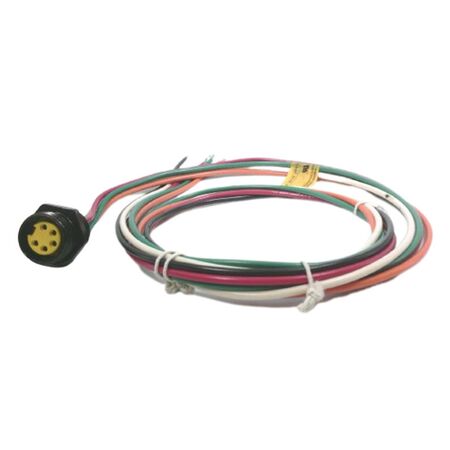

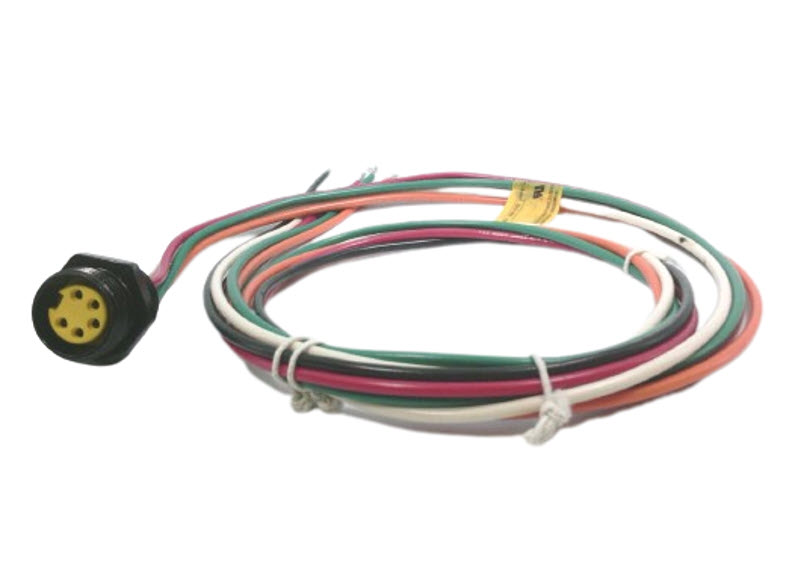

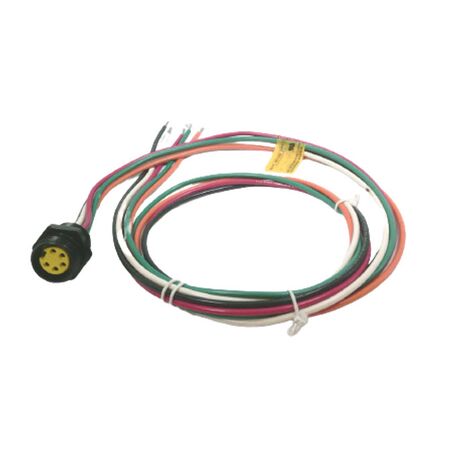

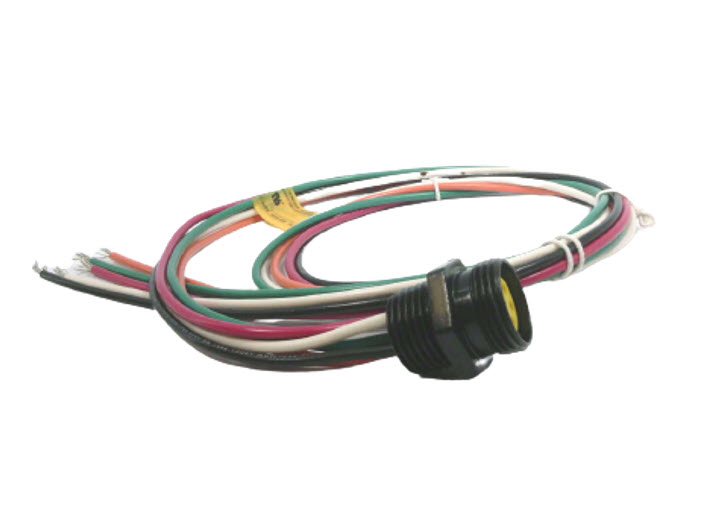

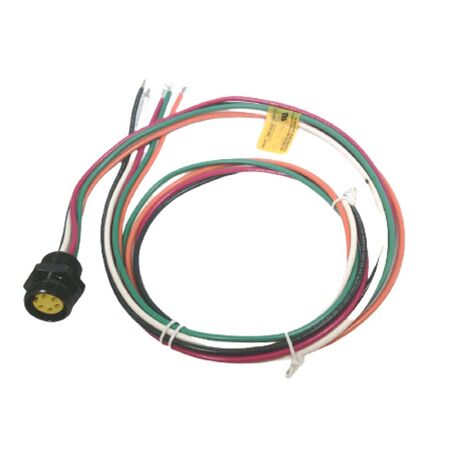

Product Name/Title: Allen-Bradley 888NF5AF13F Mini Straight Female Receptacle
Brand: Allen-Bradley
SKU: 888NF5AF13F
Alternatively Known As: Mini Straight Female Receptacle, 5 Pin Electrical Connector, Allen-Bradley 888NF5AF13F Connector
Technical Specifications
- Connector Type: Mini straight female receptacle with external threads
- Pin Count: 5 pins
- Wire Gauge: 16 AWG PVC insulated
- Standards Compatibility: IEC, US, or automotive
- Color Code: US standard
- Thread Size: 1/2 x 14 NPT
- Cable Length: 0.9 meter (3 feet)
- Material: Standard industrial grade materials
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 0.2 kg
Key Features
- Mini straight female receptacle with external threads
- 5 pin configuration suitable for various electrical connections
- 16 AWG PVC insulated wiring
- Compatible with IEC, US, or automotive standards
- US color code wiring for easy identification
- 1/2 x 14 NPT thread size for secure fitting
- 0.9 meter (3 ft.) cable length
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation and control systems
- Electrical connections in manufacturing environments
- Use in machinery requiring secure electrical receptacles
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 888NF5AF13F Mini Straight Female Receptacle is available for immediate purchase, ideal for industrial and automation electrical connections.
