Mini Tank Condensate Pump IP65 Rated Aspen Pumps
The Mini Tank Condensate Pump is designed for efficient condensate removal in HVAC applications, featuring an IP65 rated water-resistant design and a maximum flow
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Max flow rate: 35L/h at 0 head
- Max recommended head: 15m
- Tank capacity: 0.24L
- Noise level: 35 dB(A) at 1m
- Power supply: 230 VAC, 0.1A, 16W, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C (104°F)
- Inlet sizes: 22mm, 12mm, and 27mm
- Outlet sizes: 6mm and 10mm
- IP rating: IP65
- Safety switch: 3.0A normally closed
- Thermal protection included
- Fully potted motor for durability
- Dimensions (H x L x W): 120mm x 180mm x 150mm
- Weight: 1.2 kg
Key Features
- IP65 rated water resistant design

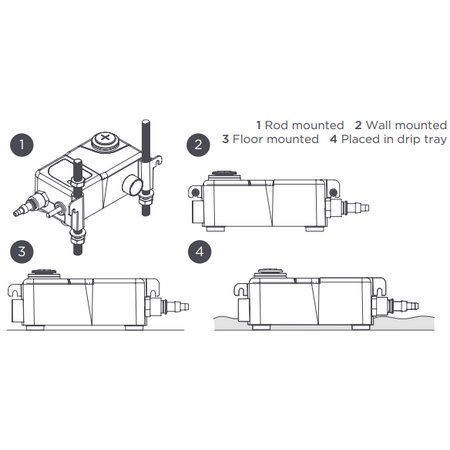

- Four installation options: wall mount, floor mount, in-pan, or suspended on M8/M10 rod
- Compact and discreet size
- Can be located inside drain pans
- Easy maintenance

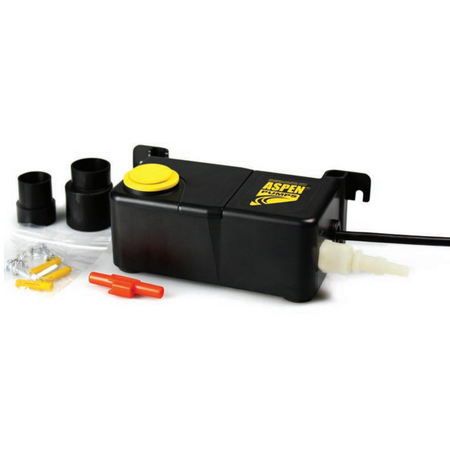

- Includes anti-siphon device and fixing kit
- Thermal protection and fully potted for durability
- Safety switch rated at 3.0A normally closed
Professional Installation Requirements
- Professional installation by a qualified HVAC technician or electrician is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Ducted air conditioning units
- Cassette air conditioning units
- Versatile installation locations including wall, floor, in-pan, or suspended
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments
- Energy-efficient motor reduces power consumption
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Mini Tank Condensate Removal Pump is available now for immediate purchase. Ideal for HVAC applications requiring versatile and reliable condensate removal.
