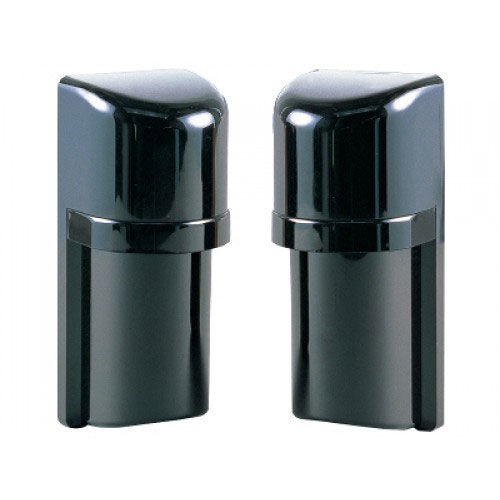

Mini-Twin Photobeam Sensor 60m Weatherproof 12-24V DC Ness
Ness mini-twin photobeam sensor features a 60m range, weatherproof housing, 12-24V DC and relay output. Ideal for outdoor alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Takex PB60TK, Twin Photoelectric Beam, Outdoor Infrared Perimeter Beam, Ness 106-210
Technical Specifications
- Model: PB-60TK
- Detection Range: 60m outdoor, 120m indoor
- Detection System: Synchronous twin infrared beams
- Supply Voltage: 10–30V DC, non-polarity
- Current Consumption: 80mA maximum
- Alarm Output: Dry-contact Form C relay, 30V AC/DC, 0.5A maximum
- Protection Rating: IP54
- Light Immunity: Up to 50,000 lux
- Operating Temperature: -25°C to +60°C
- Adjustment Range: Horizontal ±90°, vertical ±10°
- Alignment: Viewfinder and monitor jack output
- Installation: Indoor or outdoor mounting
- Dimensions (H x L x W): 170mm x 73mm x 71.5mm
- Weight: 0.78 kg
Key Features
- Synchronous twin-beam operation helps reduce false alarms from birds, leaves and weather effects
- 60m outdoor protection distance and 120m indoor protection distance
- Double-modulated infrared technology provides high immunity to sunlight and artificial light
- Automatic gain control supports stable operation across changing conditions
- Rotary optical system allows side aiming and flexible alignment
- Frost-resistant cover and sealed optical system help protect against dew and insects
- Form C relay output for integration with hardwired alarm panels
- Low-voltage DC operation suitable for security alarm installations
Professional Installation Requirements
- Installation, alignment and connection to an alarm system should be performed by a suitably qualified security installer in accordance with AS/NZS 2201.1:2007 and the alarm panel manufacturer's instructions.
Applications
- Outdoor perimeter intrusion detection
- Driveway and entrance protection
- Fence-line security
- Commercial and industrial site security
- Residential outdoor alarm systems
- Protection of windows, doors and access routes
Standards & Compliance
- Applicable installation standard: AS/NZS 2201.1:2007, Intruder alarm systems — client premises design, installation, commissioning and maintenance
Environmental Benefits
- Low-voltage DC operation supports efficient electronic security system design
- Weather-resistant construction can extend service life and reduce replacement waste
- Durable housing is suited to long-term outdoor security applications
Warranty Information
Ness Corporation's published warranty states 3 years from the date of purchase for Ness manufactured or supplied products. Confirm the applicable warranty terms for this Takex-branded SKU with the supplying Ness branch or distributor.
Available Now
Listed by Ness Corporation as SKU 106-210 and available through Ness and authorised Australian security distributors; special-order availability may apply.
