Miniature Circuit Breaker 100A | 1 Pole C Curve | IP40 Protection by NHP
Miniature circuit breaker with 100A rated current and C curve trip characteristic—ideal for residential, commercial, and industrial applications. Built for overload and short circuit protection, with IP40 dust and moisture resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

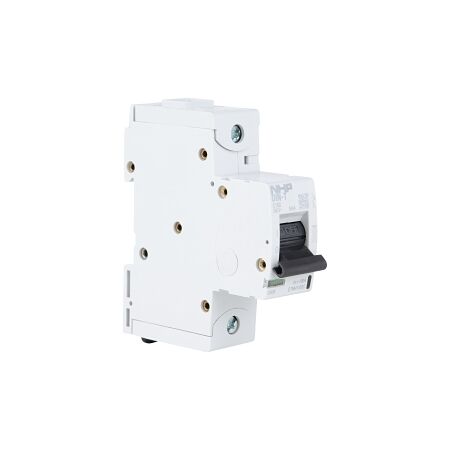

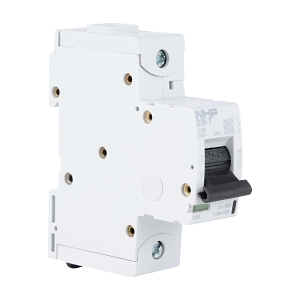

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 1Pole 100A C Curve
Brand: NHP
SKU: DTMH1100C
Alternatively Known As: Miniature Circuit Breaker, MCB, 100A Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU) at 125 V DC: 30 kA
- Rated Short Circuit Breaking Capacity (ICU) at 230 VAC: 50 kA
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 8 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-70 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-60 °C
- Dimensions (H x L x W): 100mm x 90mm x 27mm
- Weight: 0.74 kg
Key Features
- C Curve trip characteristic for protection against overloads and short circuits.
- Rated current of 100A suitable for various applications.
- IP40 protection rating for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Efficient design reduces energy loss and enhances safety in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 1Pole 100A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
