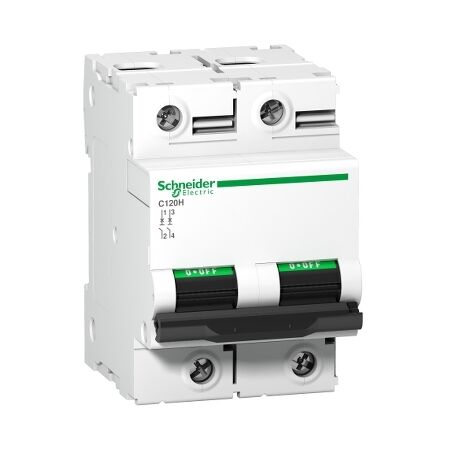

Miniature Circuit Breaker 100A | 2P C Curve | 15kA Breaking Capacity by Clipsal
Miniature circuit breaker with 100A rated current and 15kA breaking capacity—ideal for small commercial and residential distribution systems. Built for safety and reliability, featuring thermal-magnetic trip unit technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120H, 2P, 100A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18458
Alternatively Known As: Miniature Circuit Breaker, MCB, Acti9 C120
Technical Specifications
- Rated current: 100 A at 30 °C
- Rated operational voltage: 380...415 V AC, 220...240 V AC, 440 V AC, <= 250 V DC
- Control type: toggle
- Mounting mode: clip-on
- IP degree of protection: IP20
- Mechanical durability: 20,000 cycles
- Electrical durability: 5,000 cycles
- Wire stripping length: 15 mm
- Pollution degree: 3
- Overvoltage category: IV
- Operating altitude: 2000 m
- Dimensions (H x L x W): 81mm x 73mm x 54mm
- Weight: 0.41 kg
Key Features
- Thermal-magnetic trip unit technology.
- Breaking capacity of 15 kA at 230...400 V AC.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential distribution systems.
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2 standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 C120 Miniature Circuit Breaker is available now for immediate purchase. Ideal for small commercial and residential distribution systems.
