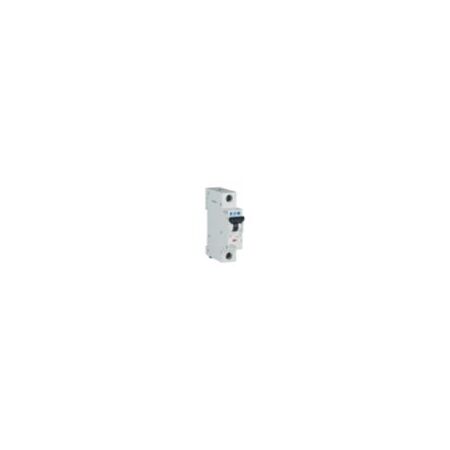

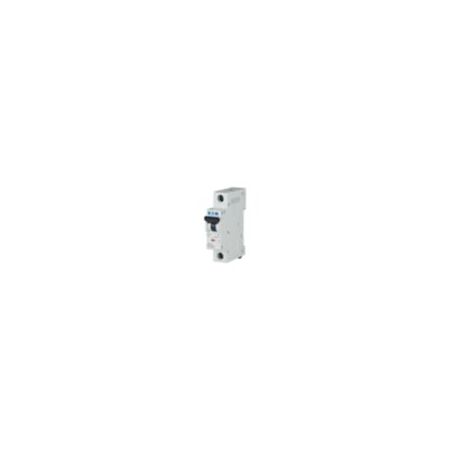

Miniature Circuit Breaker 10A C-Characteristic | Single-Pole | High Breaking Capacity | IP20 Protection by Eaton
Miniature circuit breaker with a 10A rated current and C tripping characteristic—ideal for branch circuit protection in industrial and commercial settings. Built for safety and reliability, featuring high breaking capacity up to 15 kA and compliant with multiple international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 10A C-Characteristic | Single-Pole | High Breaking Capacity | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-278557
Alternatively Known As: Miniature Circuit Breaker 10A C-Characteristic, FAZ MCB 10A, Eaton FAZ-C10/1, xEffect FAZ MCB
Technical Specifications
- Type: FAZ Miniature circuit breaker
- Number of poles: 1 (single-pole)
- Tripping characteristic: C
- Rated current (In): 10 A
- Voltage rating: 240 V AC / 415 V AC, 60 V DC
- Rated operational voltage (Ue) max: 230 V
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Rated switching capacity: 10 kA (IEC/EN 60898-1), 15 kA (IEC/EN 60947-2)
- Breaking capacity: 10 kA (UL1077)
- Admissible back-up fuse max: 125 A gL/gG
- Selectivity class: 3
- Overvoltage category: III
- Pollution degree: 2
- Lifespan electrical: 10,000 operations
- Mounting method: Top-hat rail IEC/EN 60715
- Degree of protection: IP20 (IP40 when fitted)
- Terminal capacity: up to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.11 kg
Key Features
- Single-pole miniature circuit breaker with C tripping characteristic
- Rated current of 10 A
- Rated operational voltage up to 240 V AC / 415 V AC and 60 V DC
- High breaking capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for flexible wiring
- Mounting on Top-hat rail IEC/EN 60715
- Finger and hand touch safe terminals compliant with DGUV VS3 and EN 50274
- Ambient operating temperature range from -25 °C to 75 °C
- Complies with multiple international standards including IEC/EN 60947-2, IEC/EN 60898, UL, CSA, and CE marking
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Branch circuits protection in industrial and advanced commercial switchgear
- Use in electrical distribution systems requiring single-pole circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy-efficient electrical system protection by preventing overloads and short circuits
Warranty Information
Standard Eaton warranty applies; refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xEffect FAZ-C10/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
