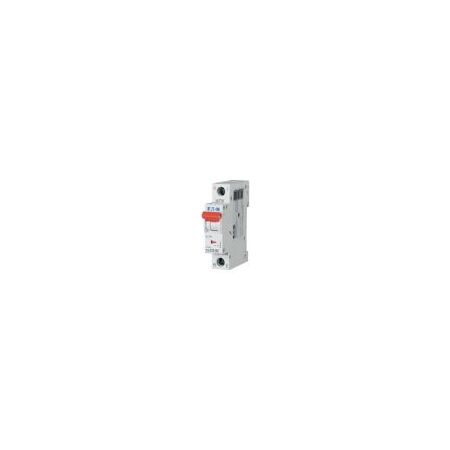

Miniature Circuit Breaker 10A | Single-Pole | C Tripping Characteristic | IP20 by Eaton
Miniature circuit breaker rated at 10A with a C tripping characteristic—ideal for residential and commercial switchgear applications. Built for safety and reliability, it features a rated operational voltage of 230V AC and a short-circuit breaking capacity of 6kA.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 10A | Single-Pole | C Tripping Characteristic | IP20 by Eaton
Brand: Eaton
SKU: Y7-242677
Alternatively Known As: Miniature Circuit Breaker 10A, MCB 10 Amp, Eaton PLS6/M, xPole PLS6 MCB
Technical Specifications
- Amperage Rating: 10 A
- Number of poles: 1 (single-pole)
- Tripping characteristic: C
- Rated operational voltage (Ue): 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Rated switching capacity (IEC/EN 60898-1): 6 kA
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Heat dissipation: 1.5 W current-dependent
- Overvoltage category: III
- Pollution degree: 2
- Current limiting class: 3
- Dimensions (H x L x W): 73mm x 85mm x 17.5mm
- Weight: 0.12 kg
Key Features
- Single-pole miniature circuit breaker with C characteristic
- Rated operational voltage up to 230 V AC
- Rated short-circuit breaking capacity of 6 kA at 230 V and 400 V
- Overvoltage category III and pollution degree 2
- IP20 degree of protection
- Connectable conductor cross section from 1 mm² to 25 mm²
- Ambient operating temperature range from -25 °C to 75 °C
- Current limiting class 3
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Energy efficient protection reducing electrical faults and energy waste
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLS6/M 10A Miniature Circuit Breaker is available for immediate purchase, ideal for residential and commercial electrical protection applications.
