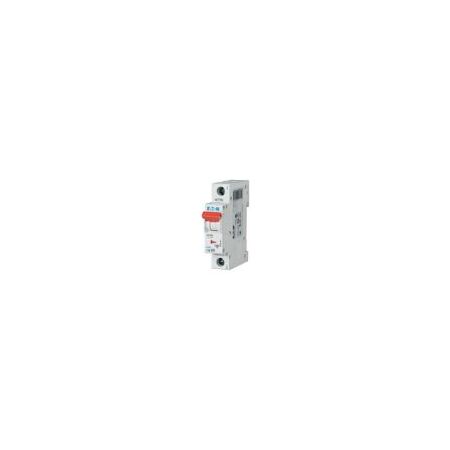

Miniature Circuit Breaker 10A | Single-Pole | D Tripping Characteristic | 10 kA Switching Capacity | Eaton
Miniature circuit breaker rated at 10A with a D tripping characteristic and 10 kA switching capacity—ideal for residential and commercial switchgear applications. Built for safety and reliability, it operates in ambient temperatures from -25°C to 75°C, ensuring effective electrical protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 10A | Single-Pole | D Tripping Characteristic | 10 kA Switching Capacity | Eaton
Brand: Eaton
SKU: Y7-242225
Alternatively Known As: Miniature Circuit Breaker 10A, MCB 10A D Curve, Eaton PLSM-D10, xPole PLS6/M MCB
Technical Specifications
- Type: Miniature circuit breaker PLSM
- Number of poles: 1 (single-pole)
- Tripping characteristic: D
- Rated current (In): 10 A
- Rated operational voltage (Ue): 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Rated switching capacity (IEC/EN 60898-1): 10 kA
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm² (solid and multi-wired)
- Overvoltage category: III
- Pollution degree: 2
- Heat dissipation: 1.5 W (current-dependent)
- Ambient operating temperature: -25 °C to 75 °C
- Current limiting class: 3
- Dimensions (H x L x W): 75mm x 80mm x 17.5mm
- Weight: 0.104 kg
Key Features
- Single-pole miniature circuit breaker
- Tripping characteristic D for high inrush currents
- Rated current 10 A
- Rated switching capacity 10 kA according to IEC/EN 60898-1
- Ambient operating temperature range from -25 °C to 75 °C
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Designed for energy-efficient electrical protection
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller series xPole PLSM-D10-MW Miniature Circuit Breaker 10A is available for immediate purchase, ideal for residential and commercial electrical protection applications.
