Miniature Circuit Breaker 10kA 1Pole 10A | B Curve | DIN Rail | IP40 by NHP
Miniature circuit breaker with 10kA short circuit capacity and B curve trip—ideal for residential and commercial use. Built for safety and efficiency, with compact DIN rail design and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

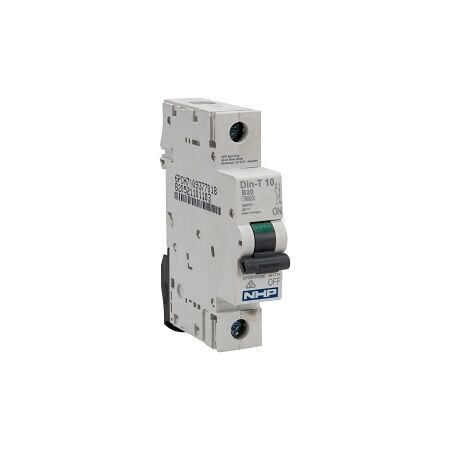

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10kA 1Pole 10A B Curve
Brand: NHP
SKU: DTCB10110B
Alternatively Known As: Miniature Circuit Breaker, MCB, 10A Circuit Breaker, DIN Rail Circuit Breaker
Technical Specifications
- Rated Current: 10 A
- Number of Poles: 1
- Trip Curve: B
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 70 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.12 kg
Key Features
- 10kA short circuit breaking capacity
- B curve trip characteristic for general applications
- Compact design for DIN rail mounting
- IP40 rated for protection against solid objects
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
- Energy-efficient design minimizes power loss.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10kA 1Pole 10A B Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
