Miniature Circuit Breaker 10kA 1Pole | 4A D Curve | IP40 Rated by NHP
Miniature circuit breaker with 10kA short circuit capacity and 4A D curve—ideal for residential, commercial, and industrial applications. Built for high inrush current protection, with IP40 rating for solid object protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

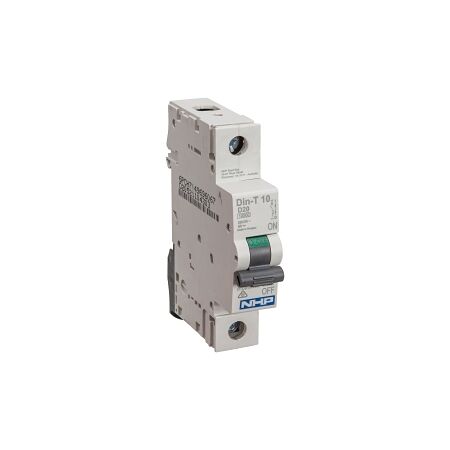

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10kA 1Pole 4A D Curve
Brand: NHP
SKU: DTCB10104D
Alternatively Known As: Miniature Circuit Breaker, MCB, DIN Rail Circuit Breaker
Technical Specifications
- Rated Current: 4 A
- Number of Poles: 1
- Trip Curve: D
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25 to 70 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.12 kg
Key Features
- 10kA short circuit breaking capacity
- D curve for high inrush current applications
- IP40 rated for protection against solid objects
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small electrical installations
- Commercial: Offices and retail spaces requiring circuit protection
- Industrial: Machinery and equipment requiring reliable circuit breakers
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
- Contributes to energy efficiency by preventing overloads.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10kA 1Pole 4A D Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
