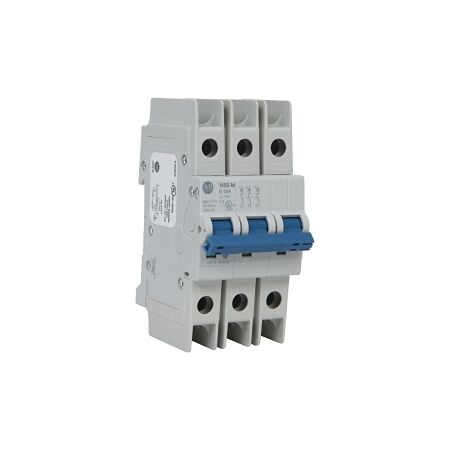

Miniature Circuit Breaker 10kA 3Pole | 13A D Curve | IP40 Rated by NHP
Miniature circuit breaker with 10kA breaking capacity and 13A D curve—ideal for residential and commercial electrical protection. Built for high inrush current applications, with IP40 rating for solid object protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 3Pole 13A D Curve
Brand: NHP
SKU: 1489M3D130
Alternatively Known As: Miniature Circuit Breaker, MCB, UL489 Circuit Breaker
Technical Specifications
- Rated Current: 13 A
- Number of Poles: 3
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage: 12 V
- Rated Short Circuit Breaking Capacity: 15 kA
- Max Rated Operation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-35 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 111mm x 75mm x 52.5mm
- Weight: 0.38 kg
Key Features
- 10kA breaking capacity for reliable protection.
- D curve for high inrush current applications.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Efficient design reduces energy loss and enhances safety.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 3Pole 13A D Curve is available now for immediate purchase. Ideal for residential and commercial electrical protection.
Non-Returnable & Non-Cancellable
