Miniature Circuit Breaker 10kA 3Pole | 8A D Curve | IP40 Rated by NHP
Miniature circuit breaker with 10kA short-circuit capacity and 8A D curve—ideal for industrial, commercial, and residential applications. Built for high inrush current protection, with IP40 rating for solid object protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

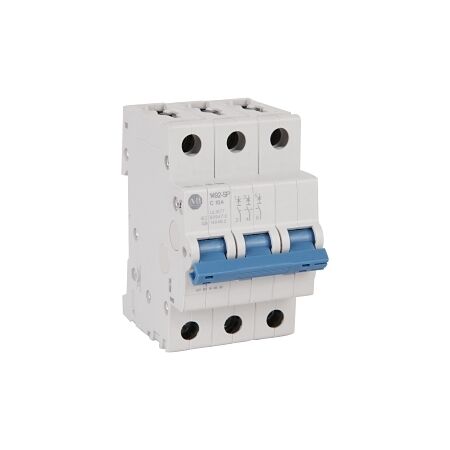

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL1077 10kA 3Pole 8A D Curve
Brand: NHP
SKU: 1492SPM3D080
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 8 A
- Number of Poles: 3
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 15 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 80mm x 67mm x 52.5mm
- Weight: 0.34 kg
Key Features
- 10kA short-circuit breaking capacity.
- D curve for high inrush current applications.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical distribution systems
- Residential: Circuit protection in homes
Standards & Compliance
- Complies with AS/NZS 60947.2 for circuit breakers.
Environmental Benefits
- Enhances safety by preventing electrical overloads and short circuits.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL1077 10kA 3Pole 8A D Curve is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
Non-Returnable & Non-Cancellable
