Miniature Circuit Breaker 125A | 1 Pole C Curve | IP40 Rated by NHP
Miniature circuit breaker with 125A rated current and C trip curve—ideal for residential and commercial electrical systems. Built for overload and short circuit protection, with IP40 rating for solid object protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

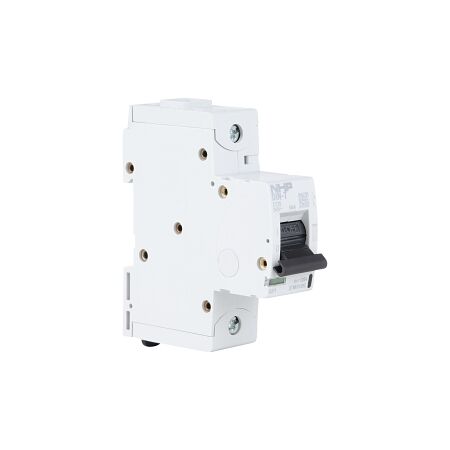

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 1Pole 125A C Curve
Brand: NHP
SKU: DTMH1125C
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU) at 125 V DC: 30 kA
- Rated Short Circuit Breaking Capacity (ICU) at 230 VAC: 50 kA
- Rated Insulation Voltage (UI): 440 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-70 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-60 °C
- Dimensions (H x L x W): 100mm x 90mm x 27mm
- Weight: 0.74 kg
Key Features
- Rated current of 125 A with a C trip curve for protection against overloads and short circuits.
- IP40 rated for protection against solid objects larger than 1 mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety, reducing the risk of fire hazards and electrical failures.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 1Pole 125A C Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
