Miniature Circuit Breaker 125A 2P | B Curve | 15kA Breaking Capacity | IP20 by Clipsal
Miniature circuit breaker with 125A rated current and B curve—ideal for small commercial and residential distribution systems. Built for safety and reliability, with 15kA breaking capacity and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

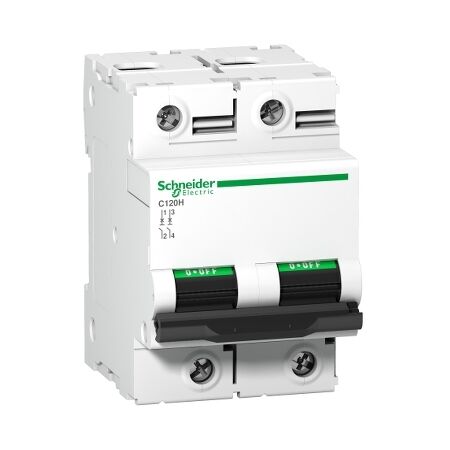

Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120H, 2P, 125A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18415
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 380...415 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 250 V DC
- Control type: toggle
- Local signalling: ON/OFF indication
- Mounting mode: clip-on
- Mounting support: 35 mm symmetrical DIN rail
- Mechanical durability: 20000 cycles
- Electrical durability: 5000 cycles conforming to IEC 60947-2
- Connections: tunnel type terminals 1-50 mm² rigid, 1.5-35 mm² flexible
- Wire stripping length: 15 mm
- Relative humidity: 95 % at 55 °C
- Ambient air temperature for operation: -30...60 °C
- Ambient air temperature for storage: -40...70 °C
- Pollution degree: 3 conforming to IEC 60947-2
- Overvoltage category: IV
- Tropicalisation: 2 conforming to IEC 60068-1
- Operating altitude: 2000 m
- Dimensions (H x L x W): 81mm x 73mm x 54mm
- Weight: 0.41 kg
Key Features
- 125A rated current at 30 °C
- Thermal-magnetic trip unit technology
- Breaking capacity of 15000A
- IP20 protection rating
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential distribution systems
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard
- Green Premium product status
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) C120H 125A 2P B Curve is available now for immediate purchase. Ideal for small commercial and residential distribution systems.
