Miniature Circuit Breaker 125A | B Curve | 15kA Breaking Capacity | IP20 by Clipsal
Miniature circuit breaker with 125A rated current and B curve—ideal for small commercial and residential distribution systems. Built for safety and reliability, featuring 15kA breaking capacity and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

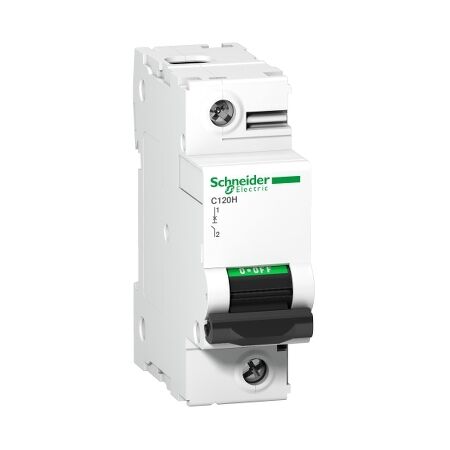

Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120H, 1P, 125A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18404
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 380...415 V AC 50/60 Hz, 125 V DC <= 144 V DC.
- Breaking capacity: 15 kA (IEC/EN 60947-2).
- Mechanical durability: 20,000 cycles.
- Electrical durability: 5,000 cycles (IEC 60947-2).
- Rated insulation voltage: 500 V AC.
- Rated impulse withstand voltage: 6 kV.
- Dimensions (H x L x W): 81mm x 73mm x 27mm
- Weight: 0.205 kg
Key Features
- 125A rated current at 30 °C.
- Thermal-magnetic trip unit technology.
- IP20 protection rating.
- Toggle control type with ON/OFF indication.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential distribution systems.
Standards & Compliance
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker C120H 125A B Curve is available now for immediate purchase. Ideal for small commercial and residential distribution systems.
