Miniature Circuit Breaker 125A | C Curve | 10kA Breaking Capacity | IP20 by Clipsal
Miniature circuit breaker with 125A rated current and C curve—ideal for small commercial and residential distribution systems. Built for safety and reliability, featuring 10kA breaking capacity and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

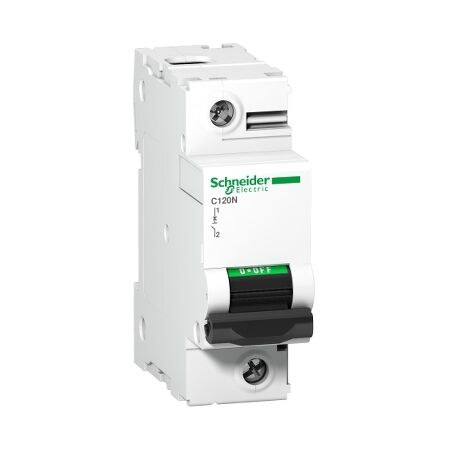

Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120N, 1P, 125A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18359
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 380...415 V AC 50/60 Hz, 125 V DC
- Breaking capacity: 10 kA at 230...400 V AC 50/60 Hz
- Mechanical durability: 20,000 cycles
- Electrical durability: 5,000 cycles
- Rated insulation voltage: 500 V AC
- Rated impulse withstand voltage: 6 kV
- Pollution degree: 3
- Overvoltage category: IV
- Tropicalisation: 2
- Dimensions (H x L x W): 81mm x 73mm x 27mm
- Weight: 0.205 kg
Key Features
- 125A rated current at 30 °C.
- Thermal-magnetic trip unit technology.
- IP20 protection rating.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential distribution systems.
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker C120N 1P 125A is available now for immediate purchase. Ideal for small commercial and residential distribution systems.
