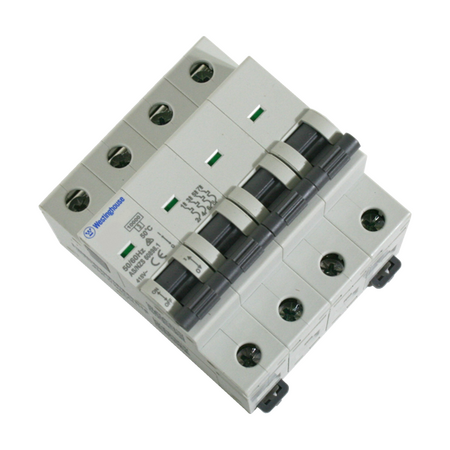

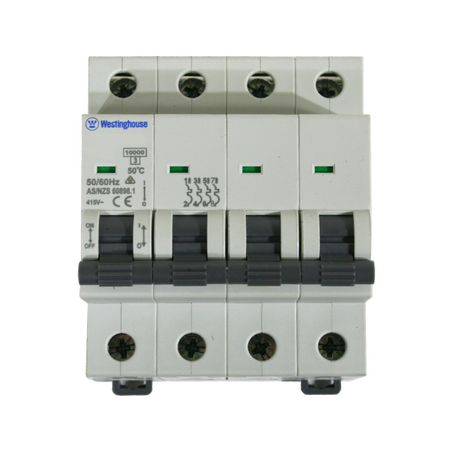

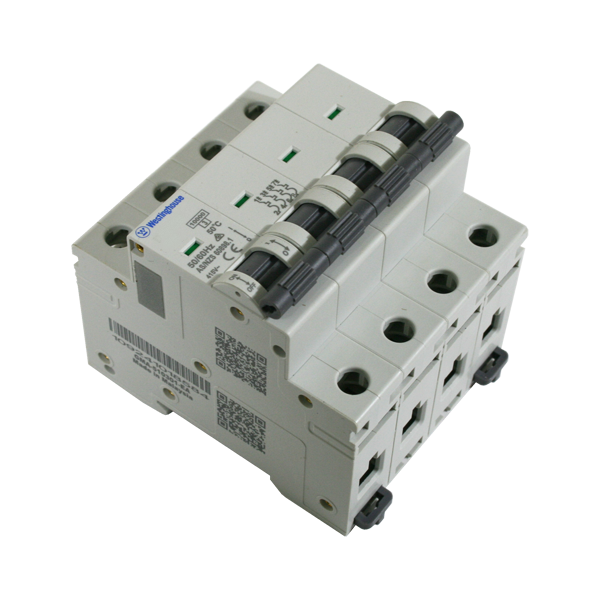

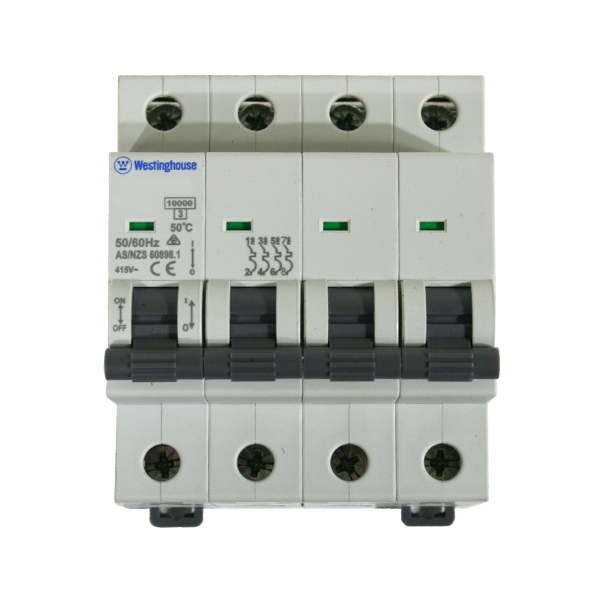

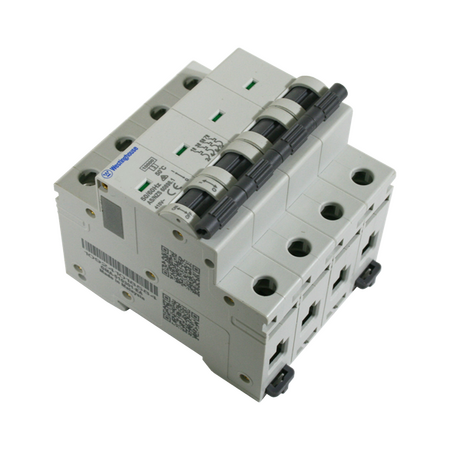

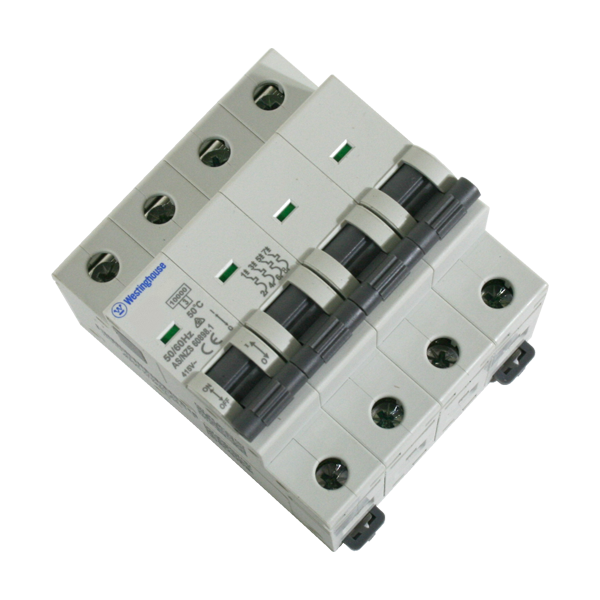

Miniature Circuit Breaker 16A 4P | C Curve Trip | 10kA Breaking Capacity | Eltech
Miniature circuit breaker with 16A rating and 4 poles—ideal for residential and commercial power distribution. Built for reliable circuit protection, featuring a C Curve trip characteristic and 10kA breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 16A 4P C Curve 10kA
Brand: Eltech
SKU: DN4C16H
Alternatively Known As: Miniature Circuit Breaker 16A 4 Pole C Curve 10kA, 4P MCB 16 Amp C Curve
Technical Specifications
- Rated Current: 16A
- Number of Poles: 4
- Trip Curve: C Curve
- Breaking Capacity: 10kA
- Type: Miniature Circuit Breaker (MCB)
- Dimensions (H x L x W): 85mm x 70mm x 70mm
- Weight: 0.2 kg
Key Features
- 16 Ampere current rating
- 4 Pole configuration for multi-phase protection
- C Curve trip characteristic for general use
- 10kA short circuit breaking capacity
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution panels
- Commercial power distribution systems
- Industrial circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires by providing reliable overcurrent protection
- Supports energy efficiency by protecting electrical circuits from damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech MCB 16A 4P C Curve 10kA is available for immediate purchase, ideal for use in power distribution and circuit protection applications.
