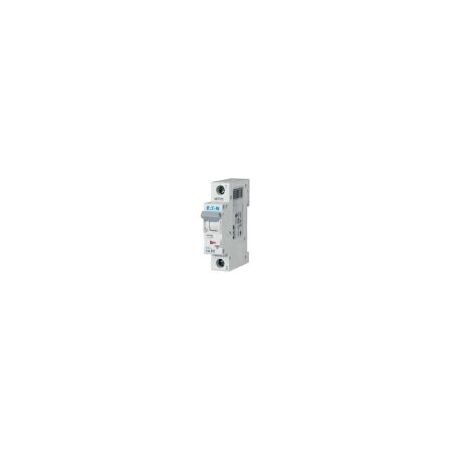

Miniature Circuit Breaker 16A | Single-Pole | D Tripping Characteristic | IP20 by Eaton
Miniature circuit breaker rated at 16A with a D tripping characteristic—ideal for residential and commercial switchgear applications. Built for safety and efficiency, featuring IP20 protection and a rated switching capacity of 10 kA.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 16A | Single-Pole | D Tripping Characteristic | IP20 by Eaton
Brand: Eaton
SKU: Y7-242229
Alternatively Known As: Miniature Circuit Breaker 16A, MCB 16A D Curve, Eaton PLSM MCB, xPole PLS6/M MCB
Technical Specifications
- Product Type: Miniature circuit breaker PLSM
- Number of poles: Single-pole
- Tripping characteristic: D
- Rated current (In): 16 A
- Rated operational voltage (Ue): 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Rated switching capacity (IEC/EN 60898-1): 10 kA
- Frequency rating: 50-60 Hz
- Overvoltage category: III
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Heat dissipation: 2.2 W current-dependent
- Current limiting class: 3
- Dimensions (H x L x W): 75mm x 80mm x 17.5mm
- Weight: 0.104 kg
Key Features
- Single-pole miniature circuit breaker with tripping characteristic D
- Rated current: 16 A
- Rated switching capacity IEC/EN 60898-1: 10 kA
- Rated operational voltage (Ue) max: 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm² (solid and multi-wired)
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class: 3
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Switchgear for residential and commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Enhances electrical safety and energy efficiency in residential and commercial installations
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLSM-D16-MW Miniature Circuit Breaker 16A is available now for immediate purchase. Ideal for residential and commercial electrical switchgear applications.
