Miniature Circuit Breaker 1P 1A | D Curve | 70kA Breaking Capacity | IP20 by Clipsal
Miniature circuit breaker with 1P 1A and D curve—ideal for residential and commercial circuit protection. Built for safety with 70kA breaking capacity and IP20 rating, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

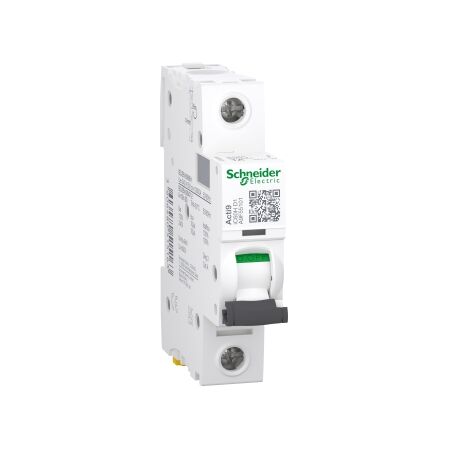

Product Name/Title: Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 1P, 1A, D curve, 10000A (IEC/EN 60898-1), 70kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9F55101
Alternatively Known As: Miniature Circuit Breaker, MCB, Acti9 Circuit Breaker
Technical Specifications
- Rated current: 1 A
- Control type: toggle
- Local signalling: trip indicator
- Overvoltage category: IV
- Pollution degree: 3
- Tropicalisation: 2
- Rated insulation voltage: 500 V AC
- Rated impulse withstand voltage: 6 kV
- Provision for padlocking: padlockable
- Total power losses: 2.3 W
- Dimensions (H x L x W): 85mm x 78.5mm x 18mm
- Weight: 0.125 kg
Key Features
- Thermal-magnetic trip unit technology
- IP20 rated for protection against solid objects
- Rated operational voltage: 12...240 V AC and 12...72 V DC
- Breaking capacity: 70 kA
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles
- Single terminal connections for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring circuit protection
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directive, ensuring reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) iC60H 1P 1A D Curve is available now for immediate purchase. Ideal for residential and commercial spaces requiring reliable circuit protection.
