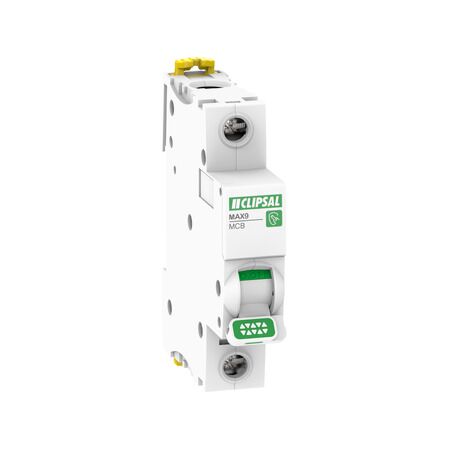

Miniature Circuit Breaker 1P 25A | C Curve 6000A | 240/415V by Clipsal
Miniature circuit breaker with 25A rated current and C curve, offering 6000A breaking capacity—ideal for residential and commercial distribution. Built for safety and reliability, with IP20 protection and 20,000 cycle durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9, Miniature Circuit-Breaker (MCB), 1P, 25A, C Curve, 6000A, 240/415V, Distribution
Brand: Clipsal
SKU: MX9MC125
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 240V AC 50/60Hz
- Curve code: C
- Magnetic tripping limit: 5...10 x In
- Rated insulation voltage: 500V
- Overvoltage category: III
- Pollution degree: 2
- Tropicalisation: severity B conforming to IEC 60068-2-30
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.125 kg
Key Features
- Rated current of 25A at 30 °C.
- Breaking capacity of 6000A at 240V AC.
- Toggle control type with ON/OFF indication.
- IP20 degree of protection.
- Mechanical durability of 20,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Distribution in residential and commercial electrical systems.
Standards & Compliance
- Conforming to AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS and free of substances of very high concern.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Miniature Circuit-Breaker (MCB) 1P, 25A, C Curve is available now for immediate purchase. Ideal for distribution in residential and commercial electrical systems.
