Miniature Circuit Breaker 1P 40A | D Curve | 6000A Capacity | IP20 by Clipsal
Miniature circuit breaker with 1P, 40A, and D curve—ideal for residential and commercial circuit protection. Built for safety with thermal-magnetic trip technology and clip-on rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

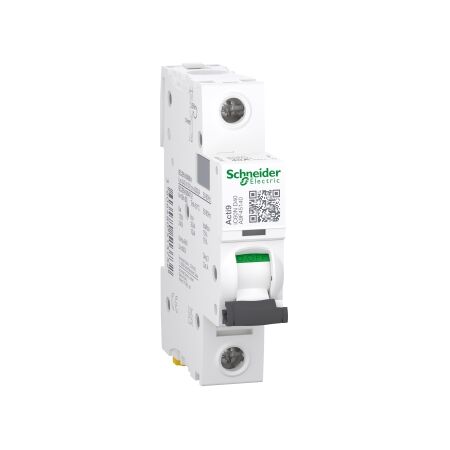

Product Name/Title: Acti9 iC60N DISBO, Miniature circuit breaker (MCB), 1P, 40A, D curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9F45140
Alternatively Known As: Miniature Circuit Breaker, MCB, Acti9 Circuit Breaker
Technical Specifications
- Rated current: 40A
- Rated operational voltage: 240V AC 50/60Hz
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles
- Overvoltage category: IV
- Rated insulation voltage: 500V AC 50/60Hz
- Rated impulse withstand voltage: 6kV
- Dimensions (H x L x W): 85mm x 78.5mm x 18mm
- Weight: 0.125 kg
Key Features
- 1P, 40A, D curve, 6000A breaking capacity
- Thermal-magnetic trip unit technology
- IP20 rated for indoor use
- Designed for clip-on mounting on rail
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring circuit protection
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Acti9 iC60N DISBO Miniature Circuit Breaker is available now for immediate purchase. Ideal for residential and commercial spaces, providing essential circuit protection.
