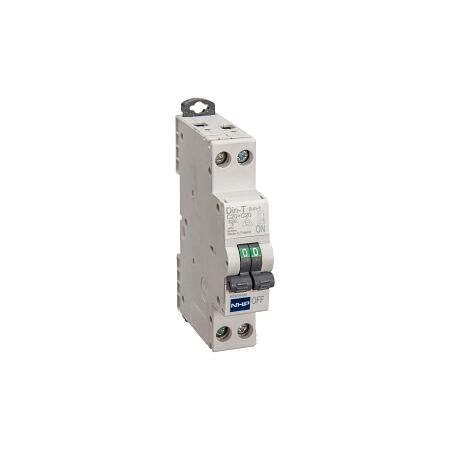

Miniature Circuit Breaker 2 IN 1 | 6kA 10A | 18mm Width | C Trip Curve by NHP
Miniature circuit breaker with 6kA breaking capacity and 10A rated current—ideal for residential and commercial electrical systems. Built for safety and efficiency, with compact 18mm width and C trip curve for general applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 1Pole plus 1Pole 10A 18mm Width
Brand: NHP
SKU: DTCBD61110C
Alternatively Known As: Miniature Circuit Breaker, MCB, DIN Rail Circuit Breaker
Technical Specifications
- Rated Current: 10 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-16 mm² (solid), 1-10 mm² (multi-wired)
- Rated Insulation Voltage: 400 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.16 kg
Key Features
- 6kA short circuit breaking capacity.
- Compact 18mm width design.
- C trip curve for general applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Electrical distribution and protection in various applications
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker is available now for immediate purchase, ideal for residential and commercial electrical systems.
