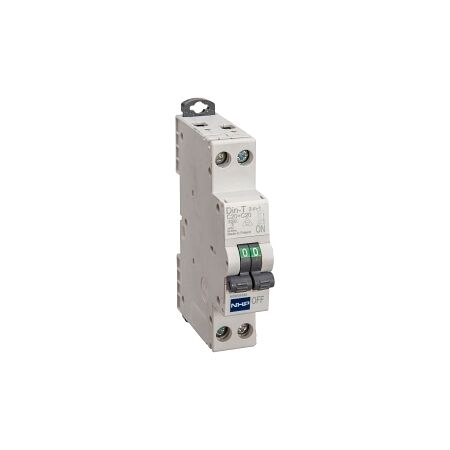

NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 1Pole plus 1Pole 16A 18mm Width

Miniature Circuit Breaker 2 IN 1 | 6kA 16A | 18mm Width | IP40 by NHP

BRAND: NHP

SKU: DTCBD61116C

$297.90 List price: $395.60

+ −

30 Days Return Delivery Options

Miniature circuit breaker with 6kA short circuit capacity and 16A rated current—ideal for residential, commercial, and light industrial applications. Built for safety with compact 18mm width and IP40 protection.

Description
Attachments

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 1Pole plus 1Pole 16A 18mm Width

Brand: NHP

SKU: DTCBD61116C

Alternatively Known As: Miniature Circuit Breaker, MCB, DIN Rail Circuit Breaker

Technical Specifications

Rated Current: 16 A
Number of Poles: 2
Trip Curve: C
Rated Voltage: 240 V
Frequency: 50-60 Hz
Voltage Type: AC/DC
Rated Short Circuit Breaking Capacity: 6 kA
Max Rated Operation Voltage: 250 V
Rated Insulation Voltage: 400 V
Rated Impulse Withstand Voltage: 6 kV
Degree of Protection: IP40
Connectable Conductor Cross Section: 1-16 mm² (solid), 1-10 mm² (multi-wired)
Pollution Degree: 3
Rated Surrounding Temperature: 30 °C
Ambient Temperature During Operating: -25-55 °C
Dimensions (H x L x W): 86mm x 76mm x 18mm
Weight: 0.16 kg

Key Features

6kA short circuit breaking capacity
Compact 18mm width design
C trip curve for general applications
IP40 protection rating

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring circuit protection

Standards & Compliance

Complies with AS/NZS 60898 for circuit breakers.

Environmental Benefits

Efficient circuit protection reduces the risk of electrical fires and equipment damage.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Miniature Circuit Breaker is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

Non-Returnable & Non-Cancellable

DTCBD61116C-AU-MCB-6kA-1P-Plus-1P-18mm-Datasheet.pdf (DTCBD61116C-AU-MCB-6kA-1P-Plus-1P-18mm-Datasheet.pdf, 752 Kb) [Download]
