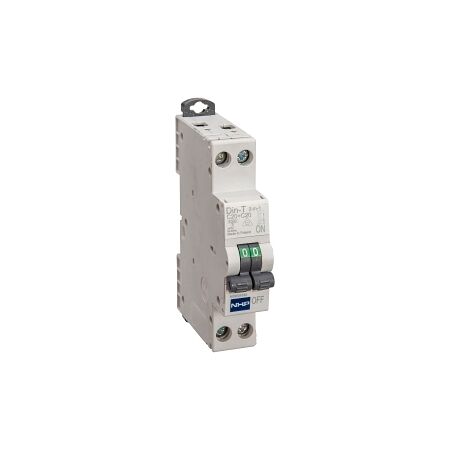

NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 1Pole plus 1Pole 2A 18mm Width

Miniature Circuit Breaker 2 IN 1 | 6kA | 18mm Width | Dual Pole by NHP

BRAND: NHP

SKU: DTCBD61102C

$297.90 List price: $395.60

+ −

30 Days Return Delivery Options

Miniature circuit breaker with 6kA short circuit capacity and compact 18mm width—ideal for residential and commercial applications. Built for dual pole versatility, ensuring enhanced electrical safety.

Description
Attachments

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 1Pole plus 1Pole 2A 18mm Width

Brand: NHP

SKU: DTCBD61102C

Alternatively Known As: Miniature Circuit Breaker, MCB, DIN Rail Circuit Breaker

Technical Specifications

Rated Current: 2 A
Number of Poles: 2
Trip Curve: C
Rated Voltage: 240 V
Frequency: 50-60 Hz
Voltage Type: AC/DC
Service Voltage (Ub AC): 12 V
Rated Short Circuit Breaking Capacity (ICN): 6 kA
Max Rated Operation Voltage (UE): 250 V
Rated Insulation Voltage (Ui): 400 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Degree of Protection: IP40
Connectable Conductor Cross Section (Solid Core): 1-16 mm²
Connectable Conductor Cross Section (Multi-Wired): 1-10 mm²
Pollution Degree: 3
Rated Surrounding Temperature Without Derating: 30 °C
Ambient Temperature During Operating: -25-55 °C
Dimensions (H x L x W): 86mm x 76mm x 18mm
Weight: 0.16 kg

Key Features

6kA short circuit breaking capacity.
Compact 18mm width design.
Dual pole configuration for versatile applications.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring circuit protection

Standards & Compliance

Complies with AS/NZS 60898 for circuit breakers.

Environmental Benefits

Enhances electrical safety, reducing the risk of fire hazards.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Miniature Circuit Breaker is available now for immediate purchase, ideal for residential and commercial electrical systems.

DTCBD61102C-AU-MCB-6kA-1P-Plus-1P-18mm-Datasheet.pdf (DTCBD61102C-AU-MCB-6kA-1P-Plus-1P-18mm-Datasheet.pdf, 752 Kb) [Download]
