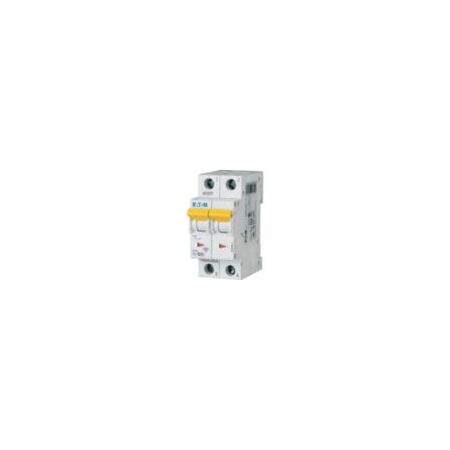

Miniature Circuit Breaker 2 Pole 25A | Tripping Characteristic C | 6 kA Switching Capacity | IP20 by Eaton
This 2-pole miniature circuit breaker with a 25A rating and tripping characteristic C is ideal for residential and commercial switchgear applications. Built for safety and reliability, it features a 6 kA rated switching capacity and is RoHS compliant for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 2 Pole 25A | Tripping Characteristic C | 6 kA Switching Capacity | IP20 by Eaton
Brand: Eaton
SKU: Y7-242882
Alternatively Known As: Miniature Circuit Breaker 2 Pole 25A, Eaton PLS6-C25/2, xPole PLS6 MCB, Eaton 2-pole MCB 25 Amp
Technical Specifications
- Number of poles: 2
- Tripping characteristic: C
- Rated current (In): 25 A
- Rated operational voltage (Ue): 400 V AC max
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Rated switching capacity (IEC/EN 60898-1): 6 kA
- Degree of protection: IP20
- Connectable conductor cross section (solid-core): 1-25 mm²
- Connectable conductor cross section (multi-wired): 1-25 mm²
- Overvoltage category: III
- Pollution degree: 2
- Heat dissipation (current-dependent): 6.4 W
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class: 3
- Dimensions (H x L x W): 73mm x 85mm x 35mm
- Weight: 0.24 kg
Key Features
- 2-pole miniature circuit breaker
- Tripping characteristic: C
- Rated current: 25 A
- Rated switching capacity IEC/EN 60898-1: 6 kA
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Supports energy-efficient electrical protection
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLS6/M 2-pole miniature circuit breaker 25A is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
