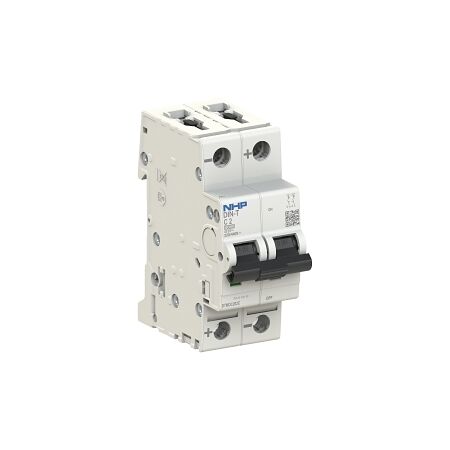

Miniature Circuit Breaker 2 Pole 40A | 10kA DC | C Curve by NHP
Miniature circuit breaker with 40A rated current and C curve trip—ideal for industrial, commercial, and residential applications. Built for DC systems up to 440V, with 10kA short circuit capacity for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 40A C Curve
Brand: NHP
SKU: DTMDC240C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 440 V
- Frequency: 50-60 Hz
- Voltage Type: DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 0.75-35 mm² (solid), 0.75-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Ambient Temperature: -25 to 70 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 35mm
- Weight: 0.2 kg
Key Features
- Rated current of 40A with a C curve trip characteristic.
- 10kA short circuit breaking capacity.
- Suitable for DC applications up to 440V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical installations requiring circuit protection
- Residential: Home electrical systems
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 40A C Curve is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.
