Miniature Circuit Breaker 2 Pole 6A | 10kA DC | C Curve by NHP
Miniature circuit breaker with 6A rated current and C curve trip—ideal for residential, commercial, and industrial applications. Built for DC systems, offering 10kA short circuit capacity and 440V rated voltage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

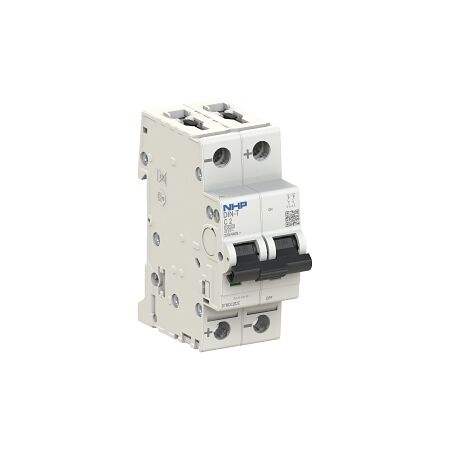

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 6A C Curve
Brand: NHP
SKU: DTMDC206C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 6 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 440 V
- Frequency: 50-60 Hz
- Voltage Type: DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 0.75-35 mm² (solid), 0.75-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 35mm
- Weight: 0.2 kg
Key Features
- Rated current of 6A with a C curve trip characteristic.
- 10kA short circuit breaking capacity.
- Suitable for DC applications with a rated voltage of 440V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small electrical installations
- Commercial: Offices and retail spaces requiring circuit protection
- Industrial: Machinery and equipment requiring reliable circuit breakers
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to enhance safety in electrical systems, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 6A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
