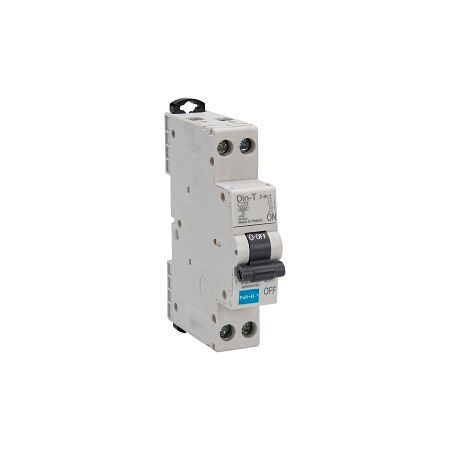

Miniature Circuit Breaker 2 Pole | 6kA | 4A | 18mm Width by NHP
Miniature circuit breaker with 6kA short circuit capacity and 4A rated current—ideal for residential, commercial, and industrial applications. Built for safety, with compact 18mm width for space-saving installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 2Pole 4A 18mm Width
Brand: NHP
SKU: DTCBD6204C
Alternatively Known As: Miniature Circuit Breaker, MCB, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 4 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage (Ub AC): 12 V
- Rated Short Circuit Breaking Capacity (Icn): 6 kA
- Rated Insulation Voltage (Ui): 400 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-16 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-10 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.16 kg
Key Features
- 6 kA short circuit breaking capacity.
- C curve trip characteristic for general applications.
- Compact 18mm width for space-saving installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Designed to enhance electrical safety and reduce fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 2Pole 4A 18mm Width is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
