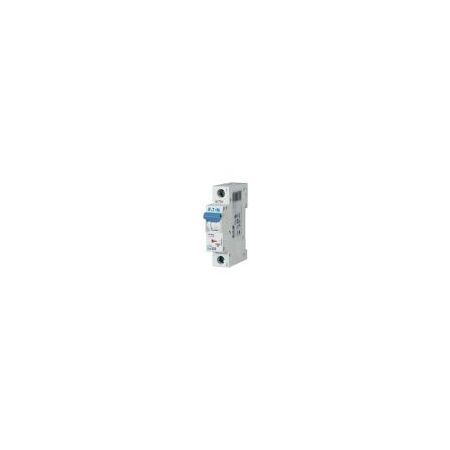

Product Name/Title: Miniature Circuit Breaker 20A | 1-Pole | C Tripping Characteristic | 10 kA Switching Capacity | Eaton
Brand: Eaton
SKU: Y7-242207
Alternatively Known As: Miniature Circuit Breaker 20A, MCB 20 Amp, Eaton PLSM MCB, xPole PLS6/M MCB
Technical Specifications
- Product Name: Eaton Moeller series xPole - PLS6/M MCB
- Number of poles: Single-pole
- Tripping characteristic: C
- Rated current (In): 20 A
- Rated switching capacity (IEC/EN 60898-1): 10 kA
- Rated operational voltage (Ue): 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Overvoltage category: III
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Heat dissipation: 3.2 W current-dependent
- Current limiting class: 3
- Dimensions (H x L x W): 75mm x 80mm x 17.5mm
- Weight: 0.104 kg
Key Features
- 1-pole miniature circuit breaker with tripping characteristic C
- Rated current: 20 A
- Rated switching capacity IEC/EN 60898-1: 10 kA
- Rated operational voltage (Ue) max: 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class: 3
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential and commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Helps protect electrical circuits, preventing damage and reducing waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller series xPole PLSM-C20-MW Miniature Circuit Breaker 20A is available now for immediate purchase. Ideal for residential and commercial electrical switchgear applications.
